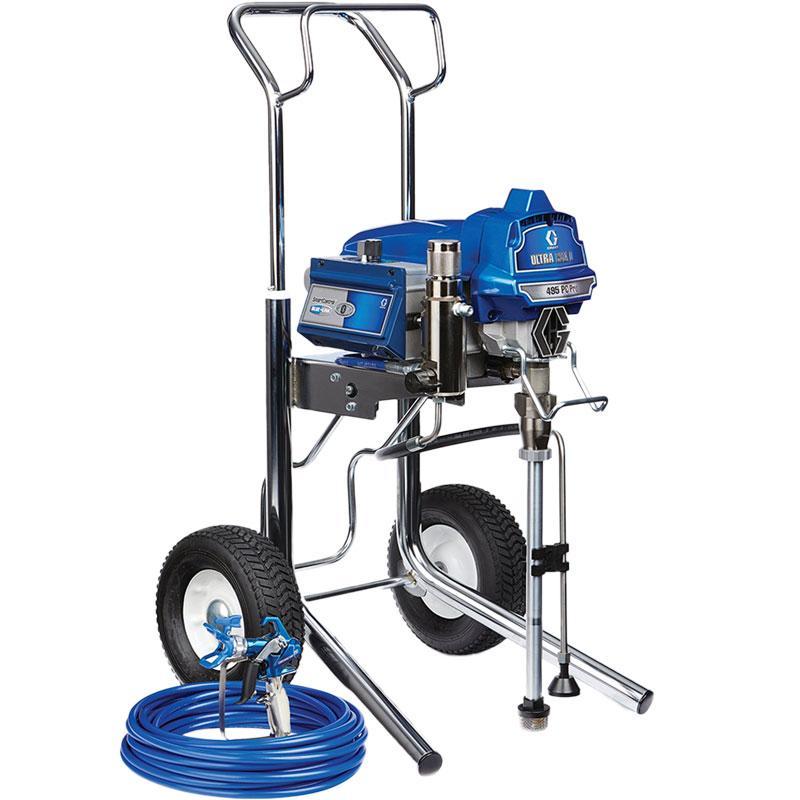

Graco Ultra Max II 495PC Electric Airless Sprayer - Hi-Boy Cart

$4,977.50
Vendor: GRACO
For professionals who need high output and daily use on residential jobs The Ultra Max II 495 features the leading technology and performance of Graco's larger Ultra Max II models....

For professionals who need high output and daily use on residential jobs

The Ultra Max II 495 features the leading technology and performance of Graco's larger Ultra Max II models. The Ultra Max II 495 is the sprayer of choice for professionals who need a higher output sprayer for daily use on residential jobs.


Makes spraying faster and easier!
  • Proven Endurance Pump for exceptional pump life with QuikAccess intake valve to easily clean or clear debris.
  • SmartControl 2.0 Pressure Control - advanced microprocessor control delivers a consistent spray fan at all spraying pressures.
  • Exclusive Brushless DC Motor - delivers higher horsepower per wall amp.
  • Chrome Plated Welded Steel Hi-Boy Cart with TiltBack cart design - withstands rugged environments.
  • Easy Out Pump Filter - reduces tip clogs and ensures quality finish.

Units include:

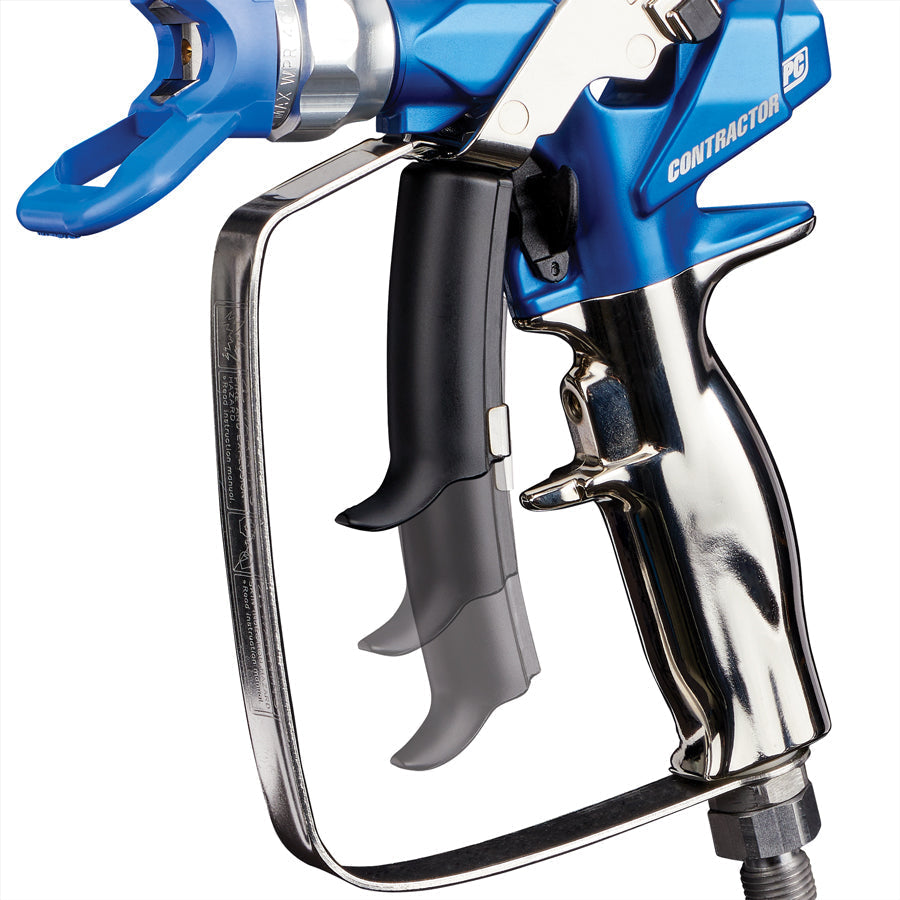

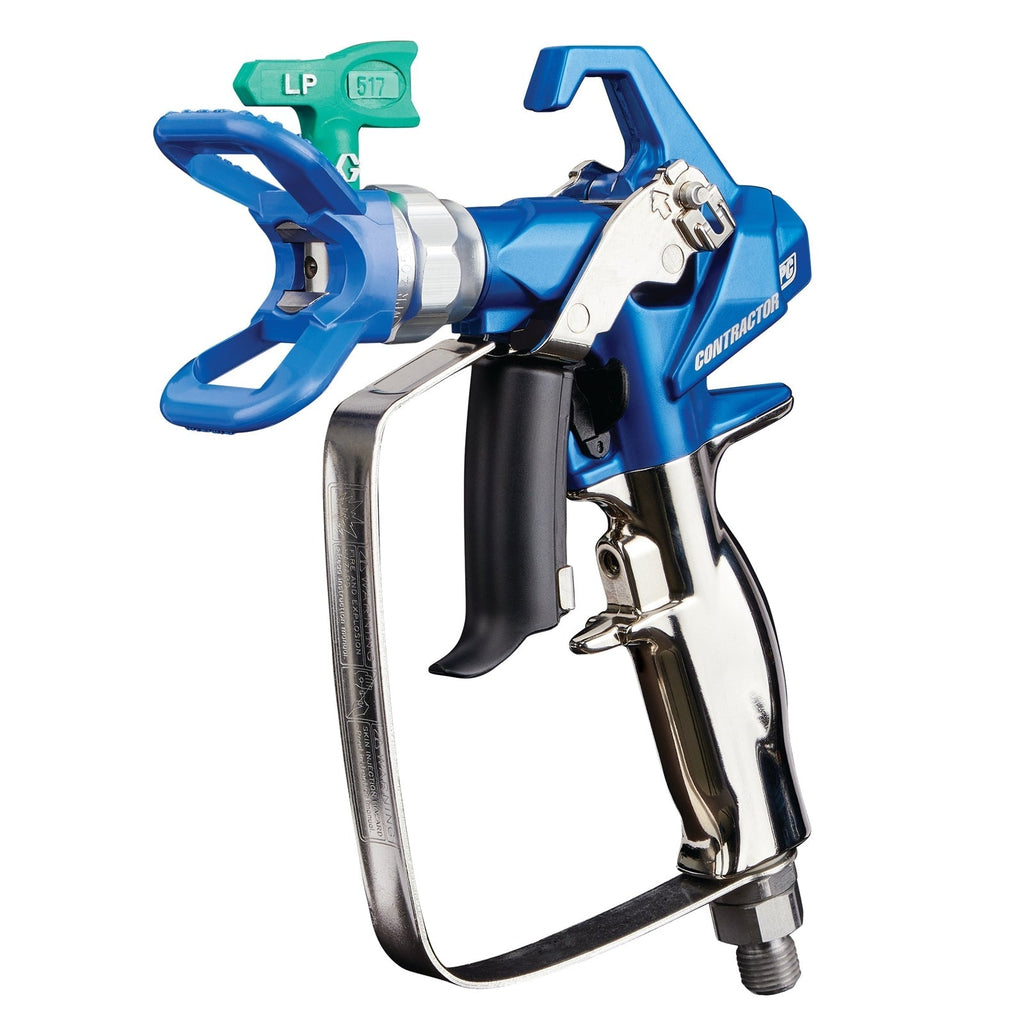

  • Contractor Gun
  • RAC X 517 SwitchTip and Guard
  • 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Airless Hose



495 Electric Airless Sprayer Operation Manual

Specifications:
0.25" Max Tip / 3,300 psi / 2.3 LPM
1.2 HP Brushless DC Motor - Lifetime Warranty
Proven Endurance Pump - Long-Life Packings
SmartControl 2.0 Pressure Control
Digital Pressure Display
Resettable & Life Litre Counter
Tilt Back Cart Design
EasyOut Pump Filter
Power Requirements
395
100-120 V, 11 A, 50/60 Hz, 1 phase
220 240V, 7A, 50/60 Hz, 1 phase
490
100-120 V, 12 A, 50/60 Hz, 1 phase
220 240V, 6A, 50/60 Hz, 1 phase
495
100-120 V, 13 A, 50/60 Hz, 1 phase
220 240V, 7A, 50/60 Hz, 1 phase
595
100-120 V, 15 A, 50/60 Hz, 1 phase
220 240V, 7A, 50/60 Hz, 1 phase
Generator Minimum Wattage
395
3000 W
490
3500 W
495
3750 W
595
4000 W

Motor HP (W)
395
3/4 (560)
490
7/10 (510)
495
3/4 (560)
595
9/10 (671)

Cycles
395
185 l
490
165 l
495
165 l
595
143 l

Maximum Delivery
395
1.9 lpm
490
2.0 lpm
495
2.3 lpm
595
2.6 lpm

Maximum Tip Size
395
0.023
490
0.023
495
0.025
595
0.027

Fluid Outlet npsm
395
1/4 in
490
1/4 in
495
1/4 in
595
1/4 in

Weight: Stand Models
Ultra 395
20 kg
UltraMax II 490
19 kg
Ultra 495
20 kg
UltraMax II 495
19 kg
Ultra 595
N/A
UltraMax II 595
N/A

Weight: Lo-Boy Models
Ultra 395
29 kg
UltraMax II 490
25 kg
Ultra 495
29 kg
UltraMax II 495
25 kg
Ultra 595
31 kg
UltraMax II 595
31 kg

Weight: Hi-Boy Models
Ultra 395
30 kg
UltraMax II 490
26 kg
Ultra 495
30 kg
UltraMax II 495
26 kg
Ultra 595
33 kg
UltraMax II 595
33 kg

Height
Stand
53.3 cm
Lo-Boy
53.3 cm
Hi-Boy (Handle Down)
74.9 cm
Hi-Boy (Handle Up)
100.3 cm

Length
Stand
38.1 cm
Lo-Boy
66 cm
Hi-Boy
53.3 cm

Width
Stand
35.6 cm
Lo-Boy
52.1 cm
Hi-Boy
52.1 cm

Noise Levels
Sound Power
100 dBa*
Sound Pressure
90 dBa*
Basic Sprayer Wetted Parts
zinc-plated carbon steel, nylon, stainless steel, PTFE, acetal, chrome plating, leather, UHMWPE, aluminum, tungsten carbide
