Graco Airless Paint Sprayer Ultra Max II 650 PC Range

GRACO
Save 4%
$5,790.00
SKU: 19Y424-B8

Title

Quantity

Out of stock
Add to Cart
Out of stock
Add to cart

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco Airless Paint Sprayer Ultra Max II 650 PC Range
$5,790.00

Description

Graco Airless Paint Sprayer Ultra Max II 650 PC Range

Special Value Pack - PaintAccess

The Lightest weight 2-gun electric airless sprayer

The Graco Ultra Max II 650 PC Pro Electric Airless Sprayer is a high-performance, lightweight 2-gun electric airless sprayer designed for professional contractors who require reliable, efficient, and portable equipment for a wide range of painting projects.

The Ultra Max II 650 PC Pro is engineered to deliver the perfect combination of quality, performance, and durability. It features advanced technology and a robust design to handle heavier coatings, ensuring a lower cost of ownership and increased productivity on job sites.

Compare Table

Click here to open table
490 PC PRO 495 PC PRO 595 PC PRO 650 PC PRO
Warranty 3 years 3 years 3 years 3 years
Part Numbers: Stand 17E887 Stand 17E889
Lo-Boy 17E891
Hi-Boy 17E892
Lo-Boy 17E897
Hi-Boy 17E896
Lo-Boy 26C979
Hi-Boy 19Y424
Max. Tip Size 0.023 0.025 0.027 0.029
Maximum bar (psi) 227 (3300) 227 (3300) 227 (3300) 227 (3300)
Maximum (lpm) 2.0 2.3 2.6 3.0
Motor Hp 1.0 MaxPower Brushless 1.2 MaxPower Brushless 1.6 MaxPower Brushless 1.8 MaxPower Brushless
Weight - Kg Stand 15kg Stand 15kg
Lo-Boy 24kg
Hi-boy 27kg
Lo-Boy 27kg
Hi-Boy 27kg
Lo-Boy 48kg
Hi-Boy 48kg
Pump Endurance Piston Endurance Piston Endurance Piston Endurance Piston
ProConnect
Hydraulic Gauge
Digital Display
BlueLink System
Control SmartControl 3.0 SmartControl 3.0 SmartControl 3.0 SmartControl 3.0
Motor MaxPower Brushless MaxPower Brushless MaxPower Brushless MaxPower Brushless
Gun Contractor PC Contractor PC Contractor PC Contractor PC
Hose 6.4 mm x 15 m (1/4 in x 50 ft) Blue Max II Airless 6.4 mm x 15 m (1/4 in x 50 ft) Blue Max II Airless 6.4 mm x 15 m (1/4 in x 50 ft) Blue Max II Airless 6.4 mm x 15 m (1/4 in x 50 ft) Blue Max II Airless
Tip RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315 RAC X LTX 517 - LP 315

Videos

Specifications

Amperage (A)15
Compatible Replacement Pump19Y298
Engine Size (HP)1.8
FeaturesEndurance Chromex Pump, SmartControl 3.0, MaxPower Brushless, Advantage Drive, ProConnect, FastFlush, Easy Out Filter, Contractor PC Gun
Filter Mesh Size60
Fluid Outlet Size (in)1/4
Fluid Outlet Thread TypeNPSM
Frame ConfigurationHi-Boy
Frequency (Hz)50/60
Hose Inlet Diameter (in)1/4

Features

Ultra Max II 650 PC Pro Benefits:

  • 2-Gun Capability to Complete Jobs Faster
  • One-Person Portability
  • Increased Capability to Handle Heavier Coatings
  • Lower Cost of Ownership

EnduranceTM Piston Pump:

  • Lasts 2X longer than competing pumps
  • Larger intake to handle heavier coatings
  • ProConnectTM— Fast and easy on-the-job pump replacement system
  • 2-Hose Connection Manifold
  • 2-Gun capability— supports up to .019 in tips

Easy OutTM filter provides easy maintenance and less clogging

Chrome over steel construction withstands jobsite abuse

MaxPower Motor and Advantage DriveTM:

  • High-torque brushless design delivers worry-free performance
  • The longest lasting drive with a Lifetime Warranty

SmartControlTM with Digital Display:

  • Constantly monitors performance and adjusts motor speed to match your tip size and spraying needs
  • FastFlushTM delivers 4X faster cleaning with 1/2 the water

Contractor PC Spray Gun:

  • All-Day comfort and control
  • Lightest weight gun in its class
  • Up to 50% lighter trigger pull force

Lowest Cost of Ownership

  • Endurance pump lasts 2X longer than competing pumps
  • Chromex piston rod with longer stroke
  • Chrome-plated stainless steel sleeve
  • V-Max Blue Packings
  • Eliminate downtime with ProConnect – fast and easy on-the-job repair
  • MaxPower Motor and Advantage Drive offer maintenance-free performance and Lifetime Warranty

What's Included

PART NO.DESCRIPTIONQTYUNIT
17Y042Contractor PC Airless Spray Gun with RAC X 517 SwitchTip1ea
LTX517RAC X SwitchTip, 5171ea
246215RAC X HandTite Tip Guard1ea
240794BlueMax II Airless Hose, 1/4 in x 50 ft1ea
238049TSL Throat Seal Liquid, 4 oz1ea

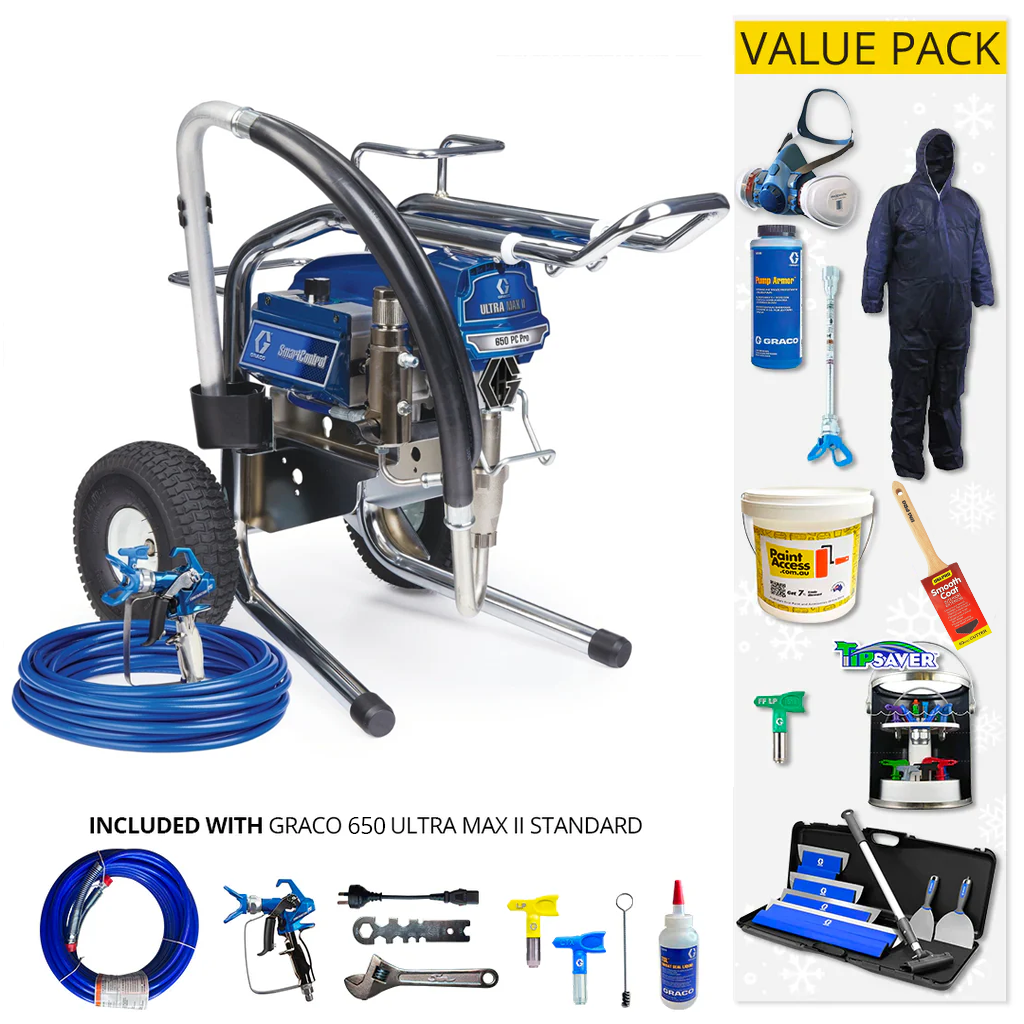

Bonus:

  • 3M 6211P1 Particulate Respirator - Spraying Face/Gas Mask with 6001 and N95 filters (7 Piece Suit) - SKU: 3M-PPE-RR03S
  • Blue Polypropylene Coveralls -SKU: CPB615-M
  • PaintAccess 4L Plastic Paint Pot - SKU:200B
  • Tipsaver Spray Equipment Cleaner/Organizer - SKU: 22TS50
  • Pump Armor 1L (Single) -SKU: 243103
  • 25cm Tip Extension w/ RAC X Guard (10") -SKU: 287019
  • Graco Airless Fine Finish RACX FFLP SwitchTip Green 312 -SKU: FFLP312
  • Uni-Pro Smooth Coat Synthetic Sash Cutter Paint Brush 63mm - SKU: 70563

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
54.61 cm
78.74 cm
62.23 cm

Weight

Courier

May require help to carry

Total Weight: 41.41 kg
Width
Width
Height
Height
Length
Length
product
58.42 cm
73.66 cm
66.04 cm

Weight

Courier

May require help to carry

Total Weight: 40.82 kg
