Graco TexSpray™ 5900 HD Petrol Airless Sprayer – Standard Series (17E839)

$14,200.00

Description

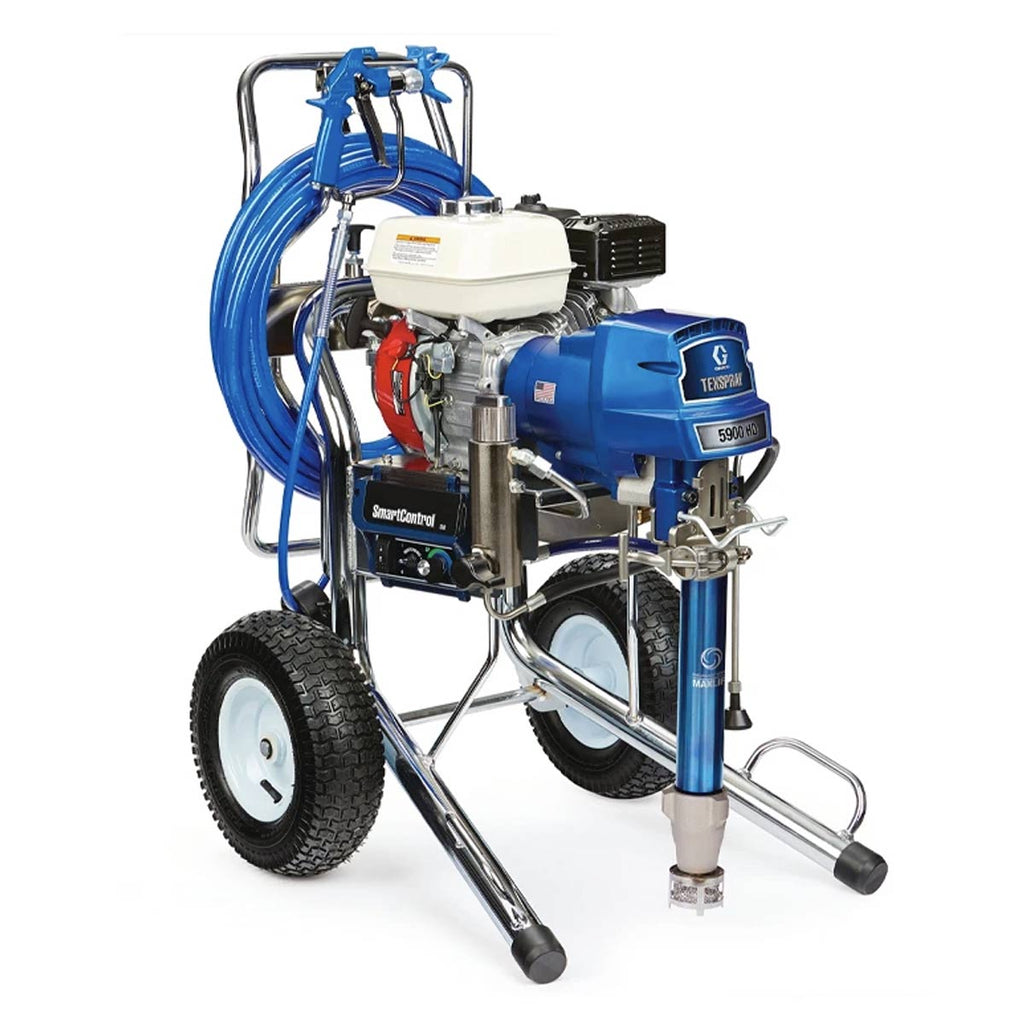

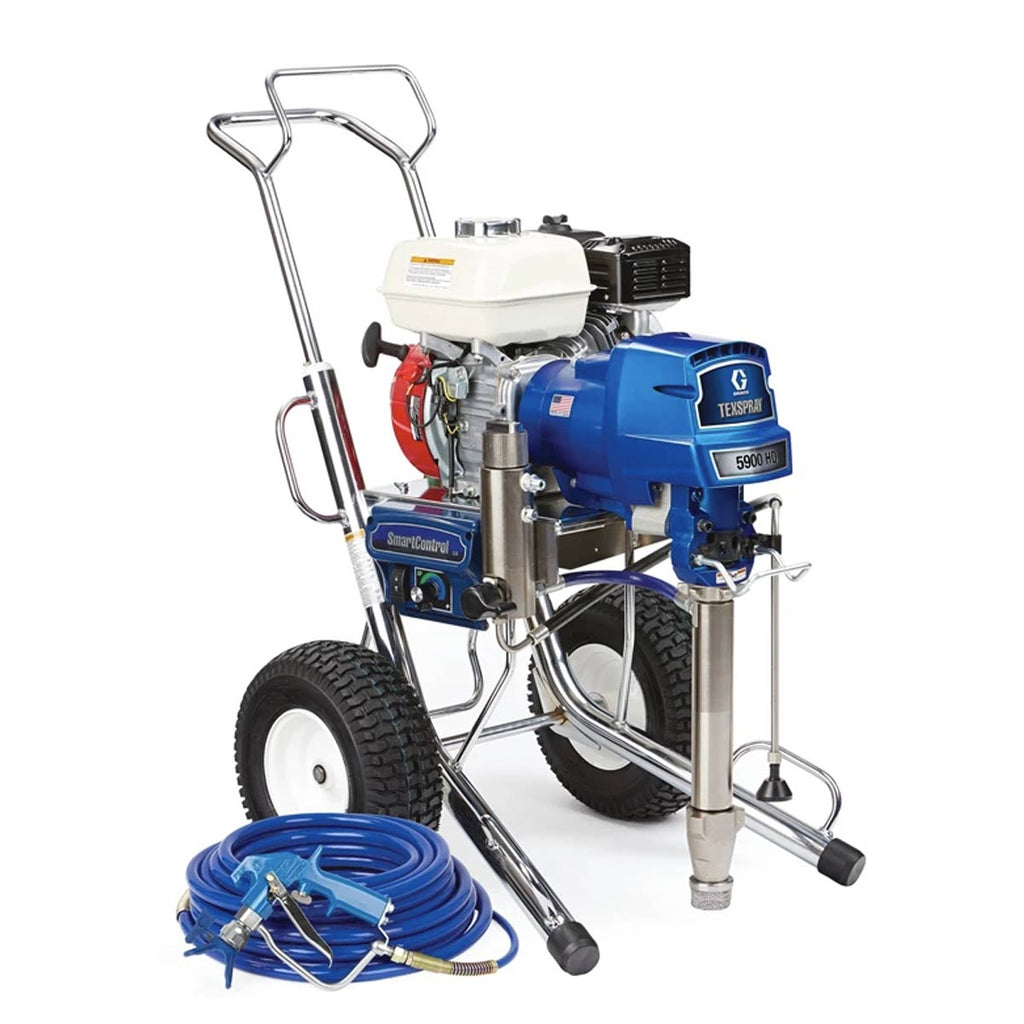

Graco TexSpray™ 5900 HD Petrol Airless Sprayer – Standard Series

The Graco TexSpray™ 5900 HD is the industry benchmark for heavy-duty petrol airless sprayers, designed for contractors who need to spray more square footage in a single day. Engineered for everyday reliability, this sprayer is capable of handling the heaviest coatings—including texture finishes, primers, and paints—with tip sizes up to 0.043".

Powered by a reliable 5.5 HP Honda® GX Engine, the 5900 HD delivers a massive flow rate of 6.06 lpm, allowing for multi-gun use (up to 4 guns simultaneously). With features like the Endurance™ Chromex™ Pump and SmartControl™ 3.0, this unit provides consistent pressure and unmatched durability on the toughest jobsites.

Compare Table

Click here to open table


	MARK V STD	MARK V STD	MARK V IRONMAN	TEXSPRAY 5900 HD STANDARD	TEXSPRAY 7900 HD STANDARD	TEXSPRAY 5900 HD PRO	TEXSPRAY 7900 HD PRO	TEXSPRAY 7900 HD IRONMAN
Warranty	3 years	3 years	3 years	3 years	3 years	3 years	3 years	3 years
Part Numbers:	17E657	17E663	17E629	17E839	17E841	17E840	17E842	17E843
Max. tip size	Paint 0.035"	Paint 0.035"	Paint 0.035"	0.043"	0.047"	0.042"	0.048"	0.047"
Max. flow - l/min (gpm)	5.1 (1.35)	5.1 (1.35)	5.1 (1.35)	6.0 (1.6)	8.3 (2.2)	6.0 (1.6)	6.0 (1.6)	8.3 (2.2)
Max. pressure - bar (PSI)	227 (3300)	227 (3300)	227 (3300)	227 (3300)	227 (3300)	227 (3300)	227 (3300)	227 (3300)
Motor rating - kW - (HP)	2.1 (2.8)	2.1 (2.8)	2.1 (2.8)	6.5 HP Honda	6.5 HP Honda	6.5 HP Honda	6.5 HP Honda	6.5 HP Honda
Weight - kg (lbs)	57kg	64kg	59kg	64kg	67kg	70kg	74kg	67kg
SmartControlTM with ProGuardTM	4.0	4.0	4.0	3.0	3.0	3.0	3.0	3.0
Hydraulic Pressure Gauge	■	■	■	■	■	■	■
LED Display		■	■			■	■	■
FastFlush 2TM	■	■	■
WatchdogTM		■	■			■	■	■
EnduranceTM Pump	■	■	■		■	■	■	■
ProConnectTM		■	■	■	■	■	■	■
Piston Rod	Chromex	MaxLife w/Vortex	MaxLife Extreme w/Vortex	Chromex	MaxLife	MaxLife w/Vortex	MaxLife w/Vortex	MaxLife Extreme w/Vortex
Sleeve	Hardened SST	MaxLife	MaxLife				MaxLife
MaxFlo 2	■	■	■	■	■	■	■	■
Rock Catcher	Std	Crush proof	Crush proof	Standard	Standard	Crush proof	Crush proof	Crush proof
TiltBackTM	■	■	■	■	■	■	■
QuickReelTM		■				■	■
Flat-Proof Tires			■					■
Tips	RAC X 427 + 531	RAC X 427 + 531	RAC X 427 + 531	LTX 517	LTX 517	RAC X LTX 517	RAC X LTX 517	RAC X LTX 517
Guard	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215
Gun	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605
Hose	Blue MaxTM II 3/8" x 15m	Blue MaxTM II 3/8" x 15m	Blue MaxTM II 3/8" x 15m	BlueMaxTM II 1/4" x 15m - 240797	BlueMaxTM II 1/4" x 15m - 240797	Blue MaxTM II 3/8" x 15m	Blue MaxTM II 3/8" x 15m	Blue MaxTM II 3/8" x 15m
Whip hose	Blue MaxTM II 1/4" x 0.9mm	Blue MaxTM II 1/4" x 0.9m	Blue MaxTM II 1/4" x 0.9m	(BlueMaxTM II 1/4" X 0.9 M - 241735)	(BlueMaxTM II 1/4" X 0.9 M - 241735)	Blue MaxTM II 1/4" x 0.9m	Blue MaxTM II 1/4" x 0.9m	Blue MaxTM II 1/4" x 0.9m
Tools	■	■	■	■	■	■	■	■
	MARK V STD	MARK V PRO	MARK V IRONMAN	TEXSPRAY 5900 HD STANDARD	TEXSPRAY 7900 HD STANDARD	TEXSPRAY 5900 HD PRO	TEXSPRAY 7900 HD PRO	TEXSPRAY 7900 HD IRONMAN


	MARK V STD	MARK V STD	MARK V IRONMAN	TEXSPRAY 5900 HD STANDARD	TEXSPRAY 7900 HD STANDARD	TEXSPRAY 5900 HD PRO	TEXSPRAY 7900 HD PRO	TEXSPRAY 7900 HD IRONMAN
Warranty	3 years	3 years	3 years	3 years	3 years	3 years	3 years	3 years
Part Numbers:	17E657	17E663	17E629	17E839	17E841	17E840	17E842	17E843
Max. tip size	Paint 0.035"	Paint 0.035"	Paint 0.035"	0.043"	0.047"	0.042"	0.048"	0.047"
Max. flow - l/min (gpm)	5.1 (1.35)	5.1 (1.35)	5.1 (1.35)	6.0 (1.6)	8.3 (2.2)	6.0 (1.6)	6.0 (1.6)	8.3 (2.2)
Max. pressure - bar (PSI)	227 (3300)	227 (3300)	227 (3300)	227 (3300)	227 (3300)	227 (3300)	227 (3300)	227 (3300)
Motor rating - kW - (HP)	2.1 (2.8)	2.1 (2.8)	2.1 (2.8)	6.5 HP Honda	6.5 HP Honda	6.5 HP Honda	6.5 HP Honda	6.5 HP Honda
Weight - kg (lbs)	57kg	64kg	59kg	64kg	67kg	70kg	74kg	67kg
SmartControlTM with ProGuardTM	4.0	4.0	4.0	3.0	3.0	3.0	3.0	3.0
Hydraulic Pressure Gauge	■	■	■	■	■	■	■
LED Display		■	■			■	■	■
FastFlush 2TM	■	■	■
WatchdogTM		■	■			■	■	■
EnduranceTM Pump	■	■	■		■	■	■	■
ProConnectTM		■	■	■	■	■	■	■
Piston Rod	Chromex	MaxLife w/Vortex	MaxLife Extreme w/Vortex	Chromex	MaxLife	MaxLife w/Vortex	MaxLife w/Vortex	MaxLife Extreme w/Vortex
Sleeve	Hardened SST	MaxLife	MaxLife				MaxLife
MaxFlo 2	■	■	■	■	■	■	■	■
Rock Catcher	Std	Crush proof	Crush proof	Standard	Standard	Crush proof	Crush proof	Crush proof
TiltBackTM	■	■	■	■	■	■	■
QuickReelTM		■				■	■
Flat-Proof Tires			■					■
Tips	RAC X 427 + 531	RAC X 427 + 531	RAC X 427 + 531	LTX 517	LTX 517	RAC X LTX 517	RAC X LTX 517	RAC X LTX 517
Guard	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215	RAC XTM - 246215
Gun	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605	HD Blue Texture - 289605
Hose	Blue MaxTM II 3/8" x 15m	Blue MaxTM II 3/8" x 15m	Blue MaxTM II 3/8" x 15m	BlueMaxTM II 1/4" x 15m - 240797	BlueMaxTM II 1/4" x 15m - 240797	Blue MaxTM II 3/8" x 15m	Blue MaxTM II 3/8" x 15m	Blue MaxTM II 3/8" x 15m
Whip hose	Blue MaxTM II 1/4" x 0.9mm	Blue MaxTM II 1/4" x 0.9m	Blue MaxTM II 1/4" x 0.9m	(BlueMaxTM II 1/4" X 0.9 M - 241735)	(BlueMaxTM II 1/4" X 0.9 M - 241735)	Blue MaxTM II 1/4" x 0.9m	Blue MaxTM II 1/4" x 0.9m	Blue MaxTM II 1/4" x 0.9m
Tools	■	■	■	■	■	■	■	■
	MARK V STD	MARK V PRO	MARK V IRONMAN	TEXSPRAY 5900 HD STANDARD	TEXSPRAY 7900 HD STANDARD	TEXSPRAY 5900 HD PRO	TEXSPRAY 7900 HD PRO	TEXSPRAY 7900 HD IRONMAN

Specifications

Max Flow Rate: 6.06 lpm (1.6 gpm)
Max Pressure: 3,300 PSI (228 bar)
Max Tip Size: 0.043" (1 Gun) / 0.019" (4 Guns)
Engine: Honda® GX 160 (5.5 HP / 4.1 kW)
Weight: 65 kg (142 lb)
Replacement Pump: SKU: 17H829

Features

Endurance™ Chromex™ Piston Pump: The most reliable pump in the industry, lasting 2X longer than competing brands. Features ceramic and stainless steel balls for maximum versatility.
Honda® GX Engine: High-performance, easy-to-start engine with Oil Alert™ to prevent damage if oil levels drop too low.
SmartControl™ 3.0: Delivers a consistent spray fan with the lowest dead band at any pressure, ideal for minimizing overspray.
MaxFlo 2 with Pack-Out Protection: Self-cleaning Vibra-Seal technology eliminates material build-up and "pack-out," ensuring continuous spraying of heavy materials.
Precision Advantage Drive: The longest-lasting drive system in the market, providing extremely quiet operation.
Easy Out™ Pump Filter: Unique inside-out design minimizes mess and reduces tip clogs for simplified maintenance.
Rugged Cart Design: Impacts and vibrations are absorbed by the durable frame, which features built-in lift handles and a telescoping handle for easy transport.
