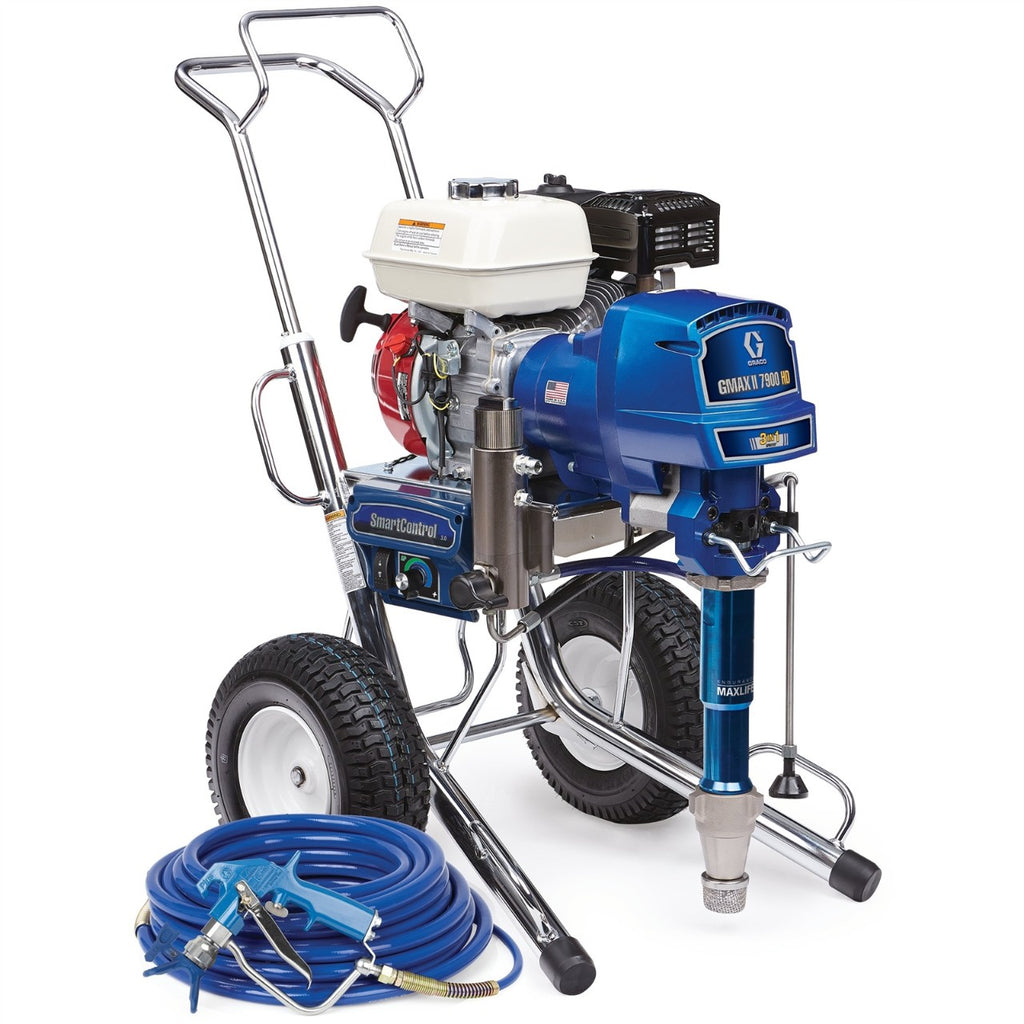

Graco TexSpray 7900 HD Standard Series Petrol Airless Sprayer (17E841)
$16,100.00

Description

GRACO GMAX II 7900 HD 3-in-1 Standard Series Gas Airless Sprayer

The Graco TexSpray 7900 HD Standard Series is the highest-performing petrol airless texture sprayer designed for the most demanding large-scale projects. Engineered for extreme durability, this 3-in-1 unit handles everything from Level 5 skim coats and drywall mud to heavy primers, paints, and protective coatings. It delivers unmatched performance, allowing contractors to use the widest range of tip sizes and longer hose lengths with ease.

Compare Table

Click here to open table

MARK V STD MARK V STD MARK V IRONMAN TEXSPRAY 5900 HD STANDARD TEXSPRAY 7900 HD STANDARD TEXSPRAY 5900 HD PRO TEXSPRAY 7900 HD PRO TEXSPRAY 7900 HD IRONMAN
Warranty 3 years 3 years 3 years 3 years 3 years 3 years 3 years 3 years
Part Numbers: 17E657 17E663 17E629 17E839 17E841 17E840 17E842 17E843
Max. tip size Paint 0.035" Paint 0.035" Paint 0.035" 0.043" 0.047" 0.042" 0.048" 0.047"
Max. flow - l/min (gpm) 5.1 (1.35) 5.1 (1.35) 5.1 (1.35) 6.0 (1.6) 8.3 (2.2) 6.0 (1.6) 6.0 (1.6) 8.3 (2.2)
Max. pressure - bar (PSI) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300)
Motor rating - kW - (HP) 2.1 (2.8) 2.1 (2.8) 2.1 (2.8) 6.5 HP Honda 6.5 HP Honda 6.5 HP Honda 6.5 HP Honda 6.5 HP Honda
Weight - kg (lbs) 57kg 64kg 59kg 64kg 67kg 70kg 74kg 67kg
SmartControlTM with ProGuardTM 4.0 4.0 4.0 3.0 3.0 3.0 3.0 3.0
Hydraulic Pressure Gauge
LED Display


FastFlush 2TM




WatchdogTM


EnduranceTM Pump
ProConnectTM
Piston Rod Chromex MaxLife w/Vortex MaxLife Extreme w/Vortex Chromex MaxLife MaxLife w/Vortex MaxLife w/Vortex MaxLife Extreme w/Vortex
Sleeve Hardened SST MaxLife MaxLife


MaxLife
MaxFlo 2
Rock Catcher Std Crush proof Crush proof Standard Standard Crush proof Crush proof Crush proof
TiltBackTM
QuickReelTM




Flat-Proof Tires





Tips RAC X 427 + 531 RAC X 427 + 531 RAC X 427 + 531 LTX 517 LTX 517 RAC X LTX 517 RAC X LTX 517 RAC X LTX 517
Guard RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215
Gun HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605
Hose Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m BlueMaxTM II 1/4" x 15m - 240797 BlueMaxTM II 1/4" x 15m - 240797 Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m
Whip hose Blue MaxTM II 1/4" x 0.9mm Blue MaxTM II 1/4" x 0.9m Blue MaxTM II 1/4" x 0.9m (BlueMaxTM II 1/4" X 0.9 M - 241735) (BlueMaxTM II 1/4" X 0.9 M - 241735) Blue MaxTM II 1/4" x 0.9m Blue MaxTM II 1/4" x 0.9m Blue MaxTM II 1/4" x 0.9m
Tools

Specifications

  • Maximum Flow Rate: 8.33 L/min (2.2 GPM)
  • Maximum Working Pressure: 3300 PSI (228 bar)
  • Engine Size: 6.5 HP (4.85 kW) Honda® GX
  • Maximum Tip Size (1 Gun): 0.048 in
  • Number of Guns Supported: Up to 4
  • Weight: 70 kg (153 lb)
  • Replacement Pump: SKU: 25E689

Features

  • Endurance™ MaxLife™ Piston Pump: Features an exclusive hardened MaxLife sleeve and rod that lasts 6X longer between repacks.
  • MaxFlo 2 with Pack-Out Protection: Utilizes self-cleaning Vibra-Seal technology to eliminate material build-up and optimized fluid passageways for the heaviest coatings.
  • SmartControl™ 3.0: Provides a consistent spray fan and pressure control with the lowest dead band at any pressure, perfect for low overspray applications.
  • Honda® GX Engine: Reliable 6.5 HP easy-to-start engine equipped with an Oil Alert system to prevent damage if oil levels drop.
  • Precision Advantage Drive: The longest-lasting drive in the industry, offering extremely quiet operation on the jobsite.
  • Rugged Cart Design: Includes built-in lift handles, a telescoping handle, and an integrated hose wrap for easy transport and loading.
  • Easy Out™ Pump Filter: Features an inside-out design to ensure fewer tip clogs and a less messy cleaning process.
  • Heavy-Duty Prime Valve: Provides maintenance-free, high-pressure dumping capability.

What's Included

  • BlueMax II Airless Hose, 3/8 in x 50 ft
  • RAC X HandTite Tip Guard
  • RAC X SwitchTip, 531
  • RAC X SwitchTip, 427
  • Heavy-Duty Blue Texture Airless Spray Gun, 4-Finger Trigger, RAC X

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
62.00 cm
102.90 cm
96.80 cm

Weight

Courier

May require help to carry

Total Weight: 70.00 kg
