GRACO TexSpray Mark V IronMan Series Hi-Boy (17E629)
$15,215.66
Description

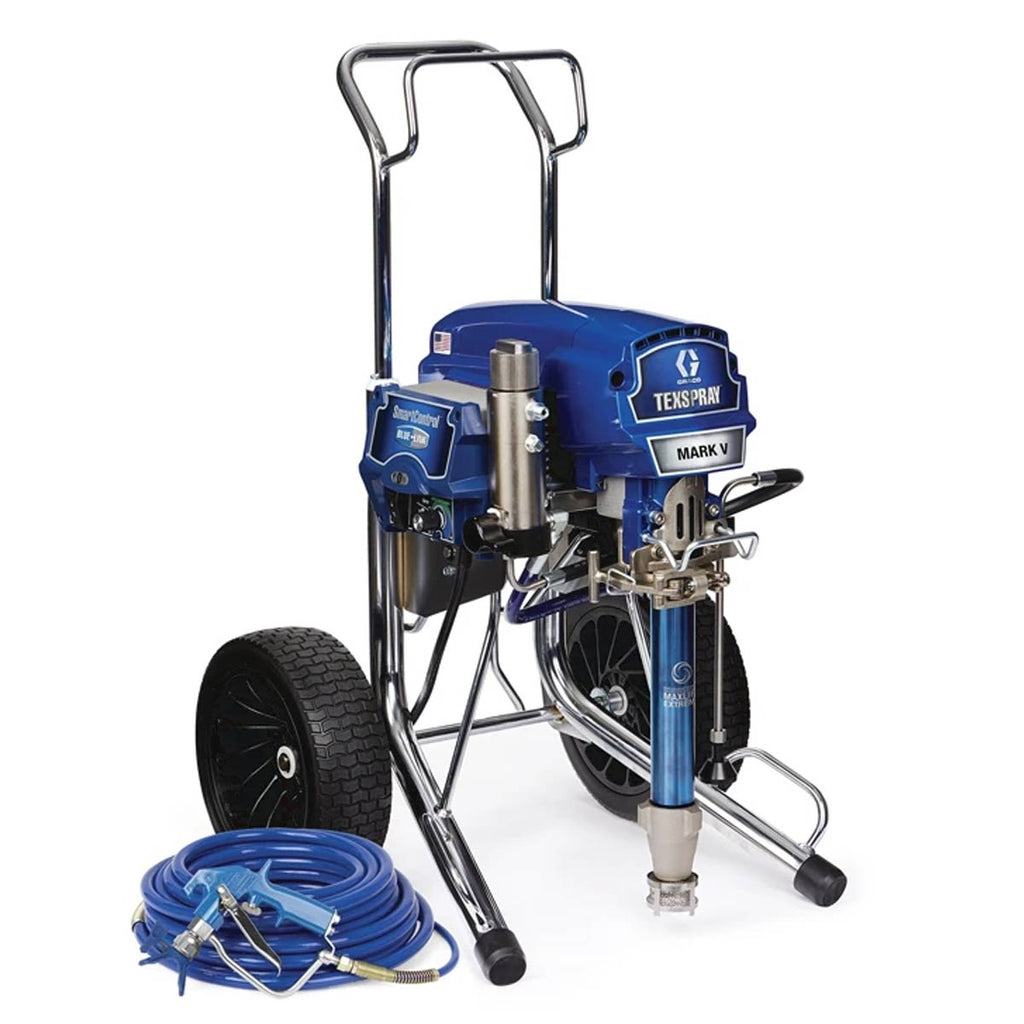

GRACO TexSpray Mark V IronMan Series Hi-Boy 17E629
The TexSpray Mark V is built to deliver a higher flow rate to help you complete jobs faster. Providing 20% more productivity than the Mark IV, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.
Everyday Reliability. TexSpray Mark Standard Series electric airless texture sprayers provide unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.
Compare Table
 |
 |
 |
 |
 |
 |
 |
 |
 |
| MARK V STD | MARK V STD | MARK V IRONMAN | TEXSPRAY 5900 HD STANDARD | TEXSPRAY 7900 HD STANDARD | TEXSPRAY 5900 HD PRO | TEXSPRAY 7900 HD PRO | TEXSPRAY 7900 HD IRONMAN | |
| Warranty | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
| Part Numbers: | 17E657 | 17E663 | 17E629 | 17E839 | 17E841 | 17E840 | 17E842 | 17E843 |
| Max. tip size | Paint 0.035" | Paint 0.035" | Paint 0.035" | 0.043" | 0.047" | 0.042" | 0.048" | 0.047" |
| Max. flow - l/min (gpm) | 5.1 (1.35) | 5.1 (1.35) | 5.1 (1.35) | 6.0 (1.6) | 8.3 (2.2) | 6.0 (1.6) | 6.0 (1.6) | 8.3 (2.2) |
| Max. pressure - bar (PSI) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) | 227 (3300) |
| Motor rating - kW - (HP) | 2.1 (2.8) | 2.1 (2.8) | 2.1 (2.8) | 6.5 HP Honda | 6.5 HP Honda | 6.5 HP Honda | 6.5 HP Honda | 6.5 HP Honda |
| Weight - kg (lbs) | 57kg | 64kg | 59kg | 64kg | 67kg | 70kg | 74kg | 67kg |
| SmartControlTM with ProGuardTM | 4.0 | 4.0 | 4.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Hydraulic Pressure Gauge | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |
| LED Display | ■ | ■ | ■ | ■ | ■ | |||
| FastFlush 2TM | ■ | ■ | ■ | |||||
| WatchdogTM | ■ | ■ | ■ | ■ | ■ | |||
| EnduranceTM Pump | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |
| ProConnectTM | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |
| Piston Rod | Chromex | MaxLife w/Vortex | MaxLife Extreme w/Vortex | Chromex | MaxLife | MaxLife w/Vortex | MaxLife w/Vortex | MaxLife Extreme w/Vortex |
| Sleeve | Hardened SST | MaxLife | MaxLife | MaxLife | ||||
| MaxFlo 2 | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
| Rock Catcher | Std | Crush proof | Crush proof | Standard | Standard | Crush proof | Crush proof | Crush proof |
| TiltBackTM | ■ | ■ | ■ | ■ | ■ | ■ | ■ | |
| QuickReelTM | ■ | ■ | ■ | |||||
| Flat-Proof Tires | ■ | ■ | ||||||
| Tips | RAC X 427 + 531 | RAC X 427 + 531 | RAC X 427 + 531 | LTX 517 | LTX 517 | RAC X LTX 517 | RAC X LTX 517 | RAC X LTX 517 |
| Guard | RAC XTM - 246215 | RAC XTM - 246215 | RAC XTM - 246215 | RAC XTM - 246215 | RAC XTM - 246215 | RAC XTM - 246215 | RAC XTM - 246215 | RAC XTM - 246215 |
| Gun | HD Blue Texture - 289605 | HD Blue Texture - 289605 | HD Blue Texture - 289605 | HD Blue Texture - 289605 | HD Blue Texture - 289605 | HD Blue Texture - 289605 | HD Blue Texture - 289605 | HD Blue Texture - 289605 |
| Hose | Blue MaxTM II 3/8" x 15m | Blue MaxTM II 3/8" x 15m | Blue MaxTM II 3/8" x 15m | BlueMaxTM II 1/4" x 15m - 240797 | BlueMaxTM II 1/4" x 15m - 240797 | Blue MaxTM II 3/8" x 15m | Blue MaxTM II 3/8" x 15m | Blue MaxTM II 3/8" x 15m |
| Whip hose | Blue MaxTM II 1/4" x 0.9mm | Blue MaxTM II 1/4" x 0.9m | Blue MaxTM II 1/4" x 0.9m | (BlueMaxTM II 1/4" X 0.9 M - 241735) | (BlueMaxTM II 1/4" X 0.9 M - 241735) | Blue MaxTM II 1/4" x 0.9m | Blue MaxTM II 1/4" x 0.9m | Blue MaxTM II 1/4" x 0.9m |
| Tools | ■ | ■ | ■ | ■ | ■ | ■ | ■ | ■ |
