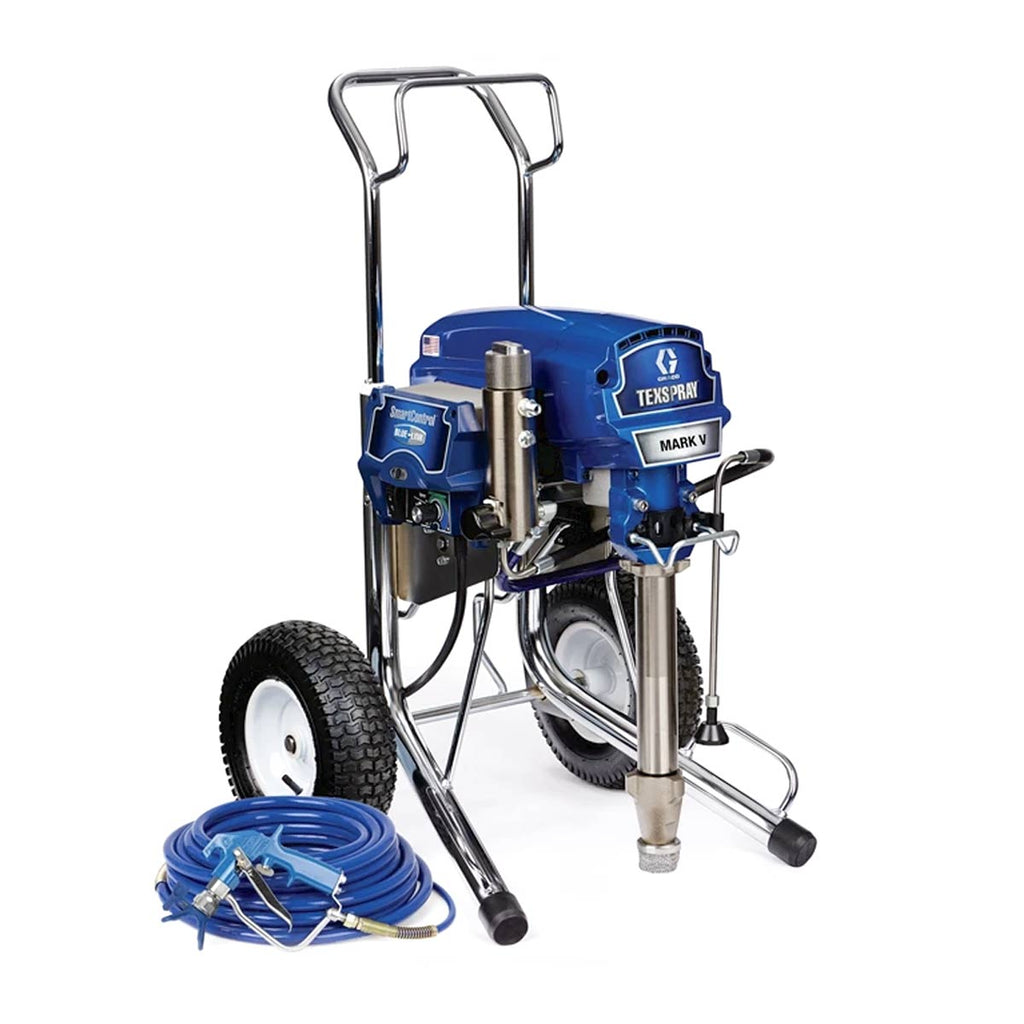

Graco TexSpray Mark V Standard Series Texture Sprayer (17E657)

GRACO
$13,900.00
SKU: 17E657

Title

Quantity

Out of stock
Add to Cart
Out of stock
Add to Cart

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco TexSpray Mark V Standard Series Texture Sprayer (17E657)
$13,900.00

Description

Graco TexSpray Mark V Standard Series Texture Sprayer 17E657

The Graco TexSpray Mark V is built to deliver a higher flow rate to help you complete jobs faster. Providing 20% more productivity than the Mark IV, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.

Everyday Reliability. Graco TexSpray Mark Standard Series electric airless texture sprayers provide unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.


    Compare Table

    Click here to open table

    		MARK V STD MARK V STD MARK V IRONMAN TEXSPRAY 5900 HD STANDARD TEXSPRAY 7900 HD STANDARD TEXSPRAY 5900 HD PRO TEXSPRAY 7900 HD PRO TEXSPRAY 7900 HD IRONMAN
    Warranty 3 years 3 years 3 years 3 years 3 years 3 years 3 years 3 years
    Part Numbers: 17E657 17E663 17E629 17E839 17E841 17E840 17E842 17E843
    Max. tip size Paint 0.035" Paint 0.035" Paint 0.035" 0.043" 0.047" 0.042" 0.048" 0.047"
    Max. flow - l/min (gpm) 5.1 (1.35) 5.1 (1.35) 5.1 (1.35) 6.0 (1.6) 8.3 (2.2) 6.0 (1.6) 6.0 (1.6) 8.3 (2.2)
    Max. pressure - bar (PSI) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300) 227 (3300)
    Motor rating - kW - (HP) 2.1 (2.8) 2.1 (2.8) 2.1 (2.8) 6.5 HP Honda 6.5 HP Honda 6.5 HP Honda 6.5 HP Honda 6.5 HP Honda
    Weight - kg (lbs) 57kg 64kg 59kg 64kg 67kg 70kg 74kg 67kg
    SmartControlTM with ProGuardTM 4.0 4.0 4.0 3.0 3.0 3.0 3.0 3.0
    Hydraulic Pressure Gauge ■ ■ ■ ■ ■ ■ ■
    LED Display
    		■ ■

    		■ ■ ■
    FastFlush 2TM ■ ■ ■




    WatchdogTM
    		■ ■

    		■ ■ ■
    EnduranceTM Pump ■ ■ ■
    		■ ■ ■ ■
    ProConnectTM
    		■ ■ ■ ■ ■ ■ ■
    Piston Rod Chromex MaxLife w/Vortex MaxLife Extreme w/Vortex Chromex MaxLife MaxLife w/Vortex MaxLife w/Vortex MaxLife Extreme w/Vortex
    Sleeve Hardened SST MaxLife MaxLife


    		MaxLife
    MaxFlo 2 ■ ■ ■ ■ ■ ■ ■ ■
    Rock Catcher Std Crush proof Crush proof Standard Standard Crush proof Crush proof Crush proof
    TiltBackTM ■ ■ ■ ■ ■ ■ ■
    QuickReelTM
    		■


    		■ ■
    Flat-Proof Tires

    		■



    		■
    Tips RAC X 427 + 531 RAC X 427 + 531 RAC X 427 + 531 LTX 517 LTX 517 RAC X LTX 517 RAC X LTX 517 RAC X LTX 517
    Guard RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215 RAC XTM - 246215
    Gun HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605 HD Blue Texture - 289605
    Hose Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m BlueMaxTM II 1/4" x 15m - 240797 BlueMaxTM II 1/4" x 15m - 240797 Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m Blue MaxTM II 3/8" x 15m
    Whip hose Blue MaxTM II 1/4" x 0.9mm Blue MaxTM II 1/4" x 0.9m Blue MaxTM II 1/4" x 0.9m (BlueMaxTM II 1/4" X 0.9 M - 241735) (BlueMaxTM II 1/4" X 0.9 M - 241735) Blue MaxTM II 1/4" x 0.9m Blue MaxTM II 1/4" x 0.9m Blue MaxTM II 1/4" x 0.9m
    Tools ■ ■ ■ ■ ■ ■ ■ ■

    Specifications

    Max Tip Size: 0.039" (1 Gun)

    Max Flow: 5.1 LPM

    Max Pressure: 3300psi

    Motor Size: 2.8 HP Brushless DC

    Voltage: 240V Australia/NZ

    Warranty: 12 Months

    Features

    Endurance Chromex Piston Pump

    • The most reliable pump
    • Lasts 2X longer than the next leading brand
    • Long life ceramic and stainless steel balls included for maximum versatility
    • Faster cleaning with the QuikAccess intake foot valve

    MaxFlo 2 with Pack-Out Protection

    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings

    BlueLink Job & Sprayer Management System

    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes

    SmartControl 4.0 with ProGuard Protection System

    • Precision pressure control
    • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
    • Prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if the material supply is too low

    FastFlush 2 System

    • Fast cleaning now even FASTER
    • Clean the pump 6X faster using ½ the water
    • High-velocity fluid flow delivered with 60% higher motor speed

    MaxPower DC Motor & Advantage Drive

    • Maintenance-Free Power
    • Field proven brushless design
    • The Longest Lasting Drive
    • Improved jobsite conditions with extremely quiet operation

    WatchDog Pump Protection System

    • Prevents dry pumping damage
    • Automatically shuts pump down when if the material supply is too low

    Easy Out Pump Filter

    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs

    Heavy-Duty Prime Valve

    • Maintenance-free high-pressure dumping capability

    Rugged, Durable Cart Design

    • Rugged and easy-to-move
    • Withstands tough jobsite conditions while absorbing impacts and vibrations
    • Easy hose storage with integrated hose wrap and telescoping handle
    • Easy loading with built-in lift handles

    Reviews

    Dimensions

    Width
    Width
    Height
    Height
    Length
    Length
    product
    76.20 cm
    99.06 cm
    66.04 cm

    Weight

    Courier

    May require help to carry

    Total Weight: 83.08 kg
