Graco G-Force II 4040 HC-BD 4000 PSI Pressure Washer (25N684)

$6,230.00

Description

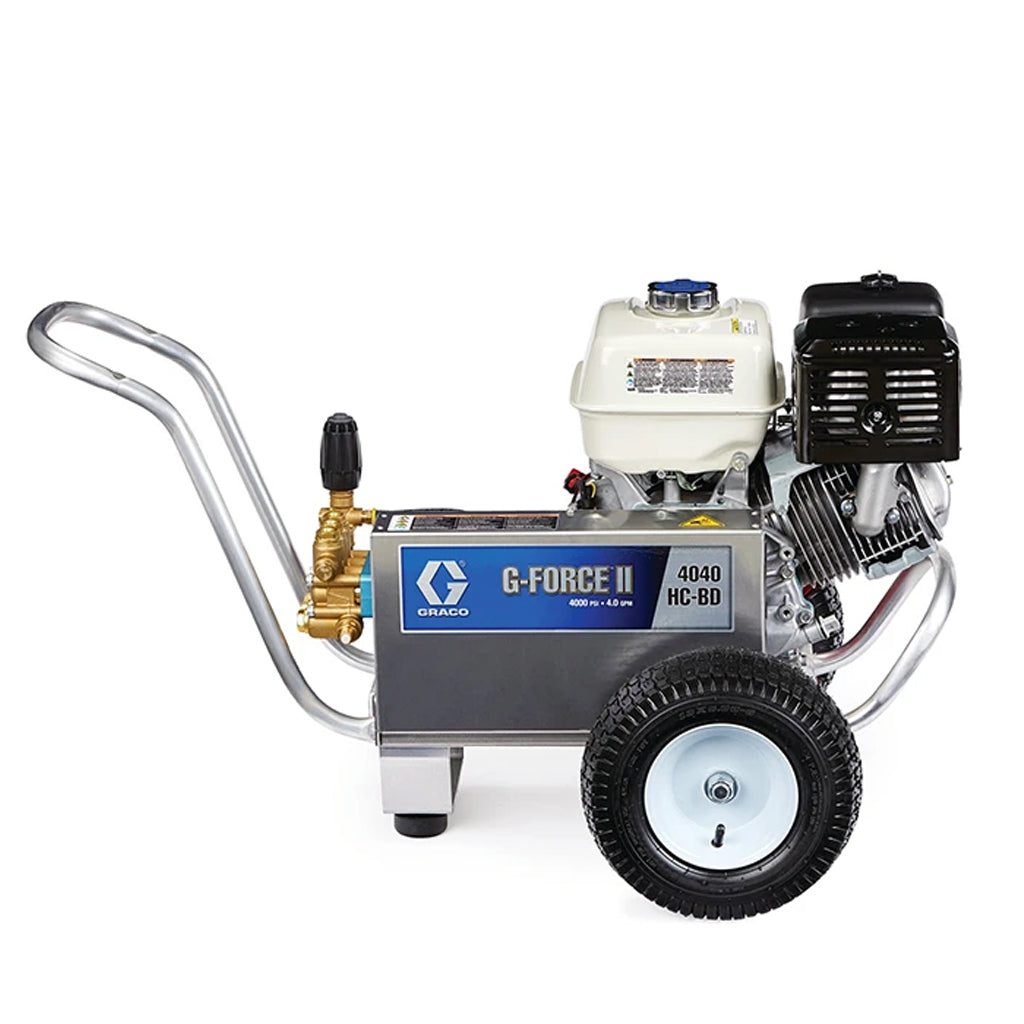

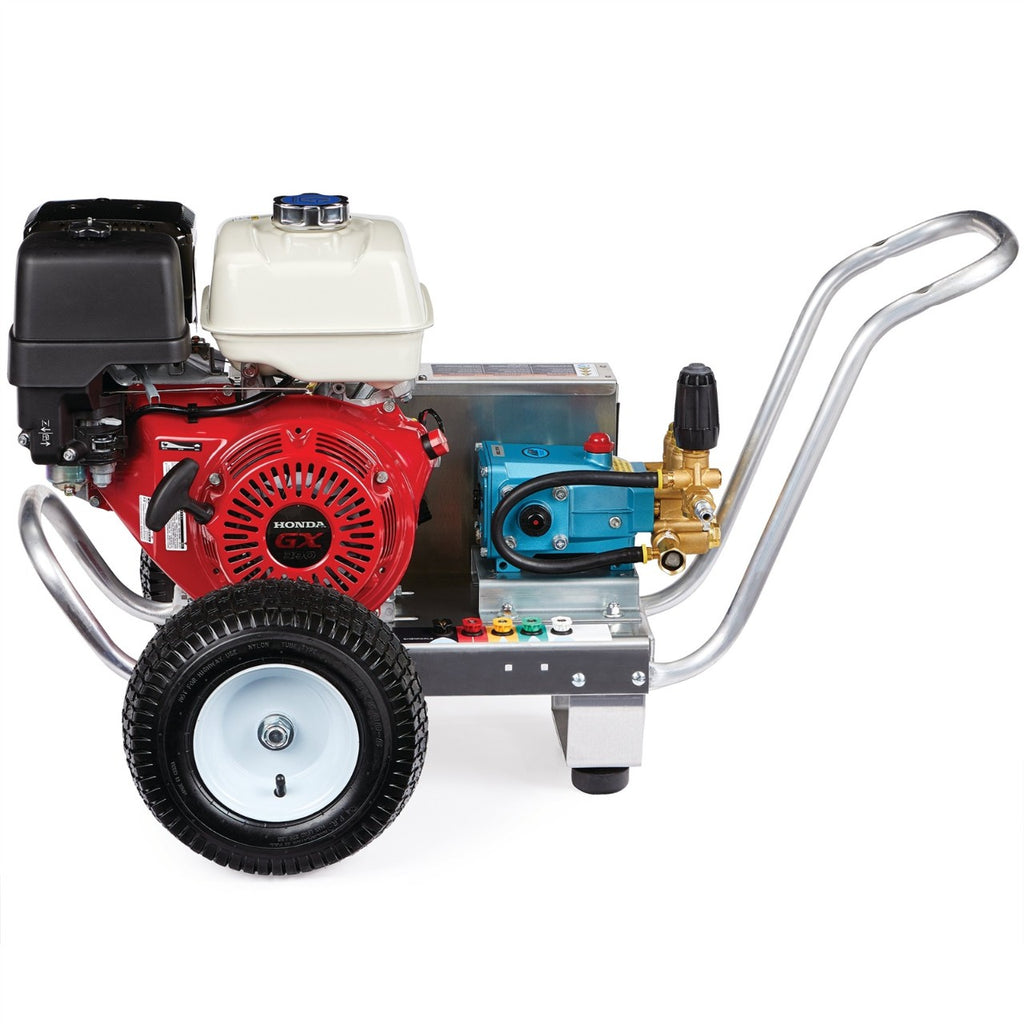

Graco G-Force II 4040 HC-BD 4000 PSI Pressure Washer

G-Force II 4040 HG-DD pressure washer is built tough to handle weekly use and deliver high flow and pressure in a compact, durable package.

Sporting a Honda GX390, GP Triplex Plunger Pump with an output of 15lpm & 4000 PSI, this is your 132kg performer suitable for 30+ hours per week of usage. This pressure washer is a belt driven system.

Being a Belt Drive pressure washer, the unit experiences lower RPM/operating temperature and ensures a long pump life. The pump is connected to a pulley and belt system that is connected to the engine. This allows the pump to run at a much lower rpm (typically 900-1700 rpm). The pump is mounted away from the engine and has a crankcase with more oil capacity, allowing the pump to run much cooler than a direct drive pump. The pump vibrates less and suffers less pump fatigue as a result of clever design.

Compare Table

Click here to open table


	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD
Part Numbers:	25N638	25N639	25N681	25N682	25N683	25N684	25N640	25N641
Max Pressure - bar (PSI)	227 (3300)	220 (3200)	275 (4000)	275 (4000)	275 (4000)	275 (4000)	290 (4200)	290 (4200)
Max. flow - l/min (gpm)	9.46 (2.5)	11.36 (3)	15.14 (4)	15.14 (4)	15.14 (4)	15.14 (4)	15 (4)	15 (4)
Engine displacement - cm3	200	270	390	390	390	390	429	390
Pump	AR Brass Triplex	AR Brass Triplex	GP Brass Triplex	CAT Brass Triplex	GP Brass Triplex	CAT Brass Triplex	AR Triplex Plunger	AR Triplex Plunger
Weight - kg (lbs)	30.4 (67)	37.2 (82)	58.5 (129)	60.3 (133)	72.1 (159)	71.6 (158)	47 (104)	46 (102)
SmartControlTM with ProGuardTM	4.0	4.0	4.0	3.0	3.0	3.0	3.0	3.0
Gardena® Connection	■	■	■	■	■	■	■
Chemical injector	Integrated	Integrated	■	■	■	■	■	■
Direct Driven	■	■	■	■			■	■
Belt Driven					■	■
Adjustable Unloader	Integrated	Integrated	External	External	External	External	Integrated	External
Easy Start Pressure Relief		■	■	■	■	■	■	■
Light Weight Aluminium Frame		■	■	■	■	■	■	■
Thermo-sensor	■	■	■	■	■	■	■
Cold Water	■	■	■	■	■	■	■	■
Tips	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546
Gun	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784
Filter (mesh)	50	50	50	50	50	50	50	50
Hose	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 24478315m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783
Engine oil	■	■	■	■	■	■	■	■
	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD


	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD
Part Numbers:	25N638	25N639	25N681	25N682	25N683	25N684	25N640	25N641
Max Pressure - bar (PSI)	227 (3300)	220 (3200)	275 (4000)	275 (4000)	275 (4000)	275 (4000)	290 (4200)	290 (4200)
Max. flow - l/min (gpm)	9.46 (2.5)	11.36 (3)	15.14 (4)	15.14 (4)	15.14 (4)	15.14 (4)	15 (4)	15 (4)
Engine displacement - cm3	200	270	390	390	390	390	429	390
Pump	AR Brass Triplex	AR Brass Triplex	GP Brass Triplex	CAT Brass Triplex	GP Brass Triplex	CAT Brass Triplex	AR Triplex Plunger	AR Triplex Plunger
Weight - kg (lbs)	30.4 (67)	37.2 (82)	58.5 (129)	60.3 (133)	72.1 (159)	71.6 (158)	47 (104)	46 (102)
SmartControlTM with ProGuardTM	4.0	4.0	4.0	3.0	3.0	3.0	3.0	3.0
Gardena® Connection	■	■	■	■	■	■	■
Chemical injector	Integrated	Integrated	■	■	■	■	■	■
Direct Driven	■	■	■	■			■	■
Belt Driven					■	■
Adjustable Unloader	Integrated	Integrated	External	External	External	External	Integrated	External
Easy Start Pressure Relief		■	■	■	■	■	■	■
Light Weight Aluminium Frame		■	■	■	■	■	■	■
Thermo-sensor	■	■	■	■	■	■	■
Cold Water	■	■	■	■	■	■	■	■
Tips	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546
Gun	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784
Filter (mesh)	50	50	50	50	50	50	50	50
Hose	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 24478315m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783
Engine oil	■	■	■	■	■	■	■	■
	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD

Specifications

Fuel Tank Capacity (l): 6.5
Hose Length (cm): 152
Hose Length (m): 15.2
Maximum Flow Rate (l/min): 15.14
Maximum Working Pressure (bar): #275
Maximum Working Pressure (kPa): 2750
Model: G-Force II
Motor Series: GX390
Pump Type: Triplex Plunger
Series: 4040 HC-BD
Type: Gas Pressure Washer
Weight (kg): 71.6

Features

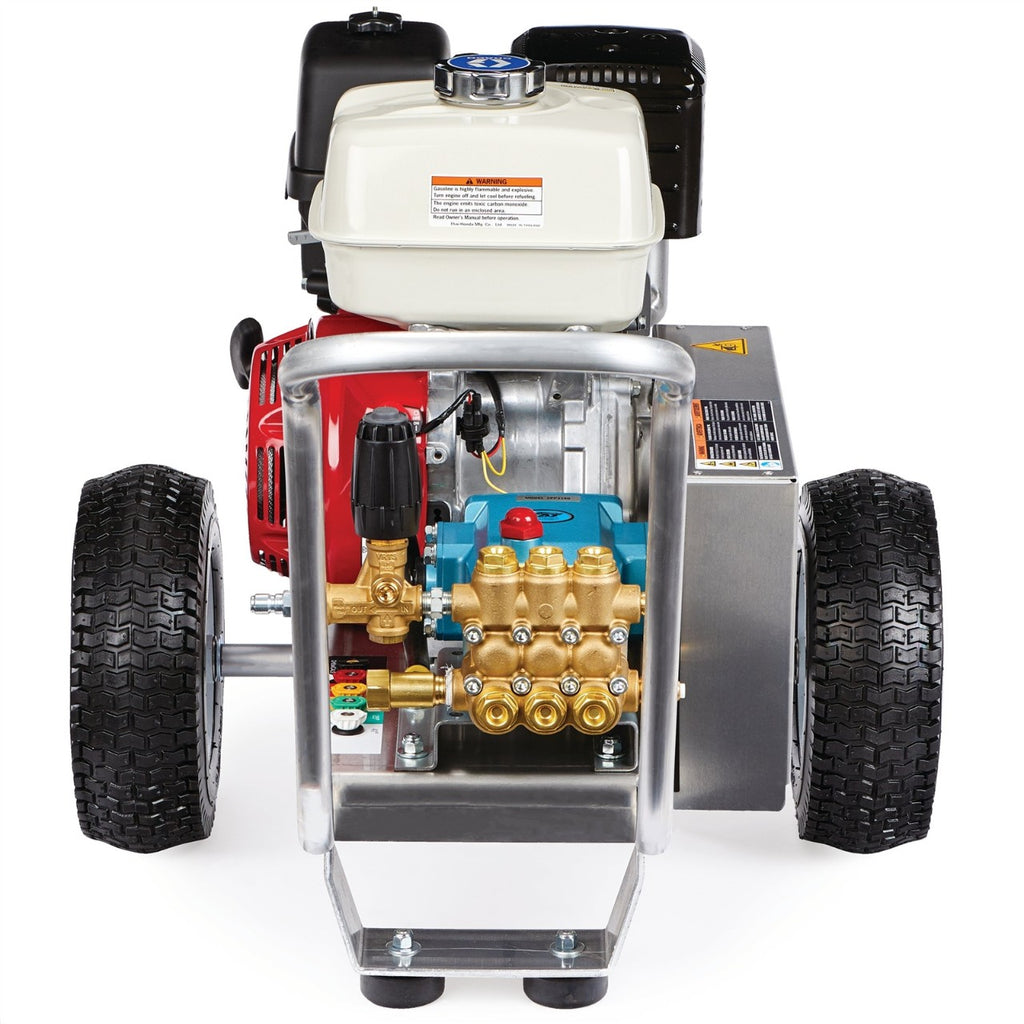

Premium CAT® Water Pump: Recognized as the most reliable and longest-lasting pump in the industry, delivering up to 2X longer life than competing brands.
Belt Drive System: The pump is mounted away from the engine, allowing it to run at a lower RPM (typically 900–1700 rpm). This results in cooler operating temperatures, reduced vibration, and significantly less pump fatigue.
Honda® Engine: Equipped with a reliable and powerful Honda® engine that features Oil Alert™ to prevent damage if oil levels drop too low.
External Pressure Unloader: Provides trouble-free, adjustable pressure to match specific application requirements while keeping water cooler to prolong pump life.
EZ Start Pressure Relief: A standard Graco feature that eliminates pressure build-up during startup, allowing you to start the engine without needing to pull the gun trigger.
Heavy-Gauge Aluminium Frame: This 100% aluminium frame is up to 40% lighter than steel frames and is entirely resistant to corrosion from water and chemicals.
Thermal Protection: Includes a thermal sensor to prevent the pump from overheating while in bypass mode.
