Graco G-Force II Pressure Washer 4240 KA-DD 4200 PSI (25N640)

Graco G-Force II Pressure Washer 4240 KA-DD 4200 PSI (25N640)

GRACO

$4,103.00

SKU: 25N640

Quantity

Out of stock

Pay in 4 interest-free payments with

Payment & Security | Refund Policy

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Graco G-Force II Pressure Washer 4240 KA-DD 4200 PSI (25N640)

$4,103.00

Description

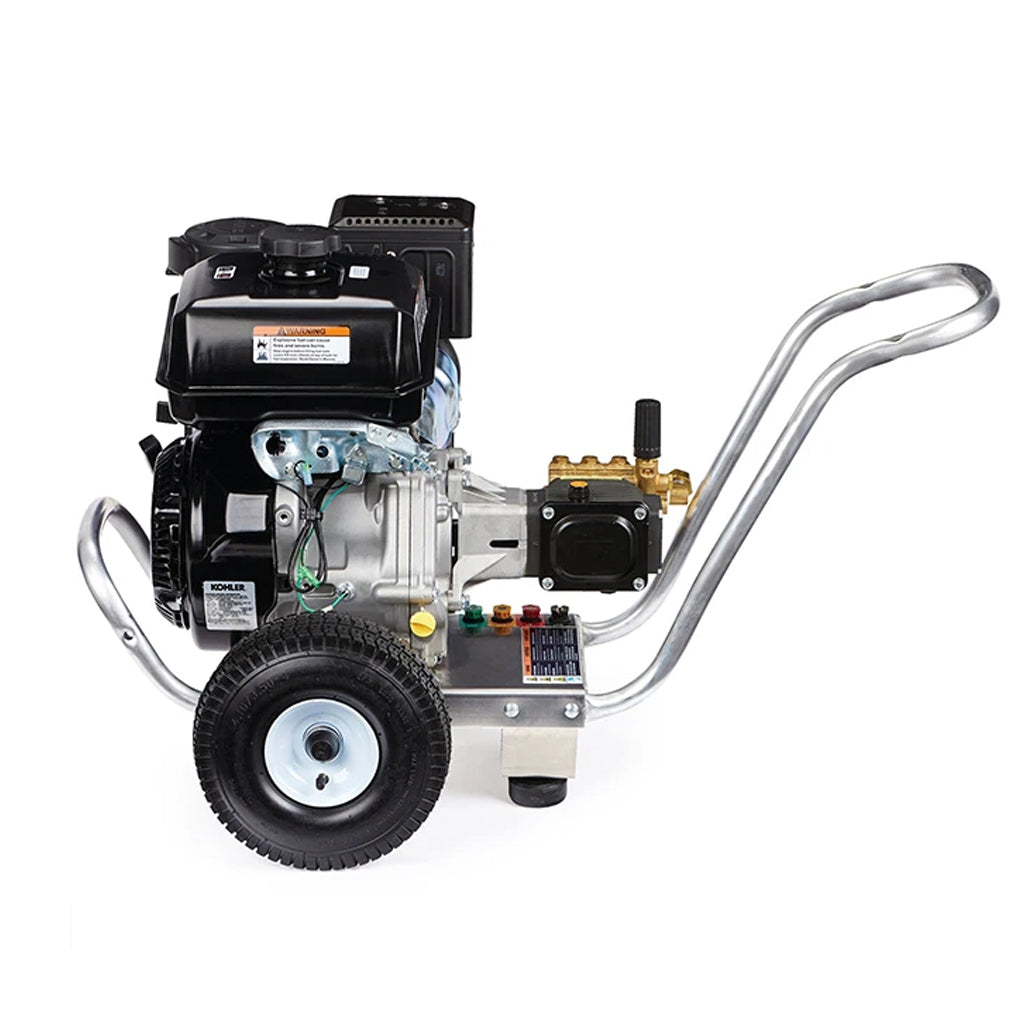

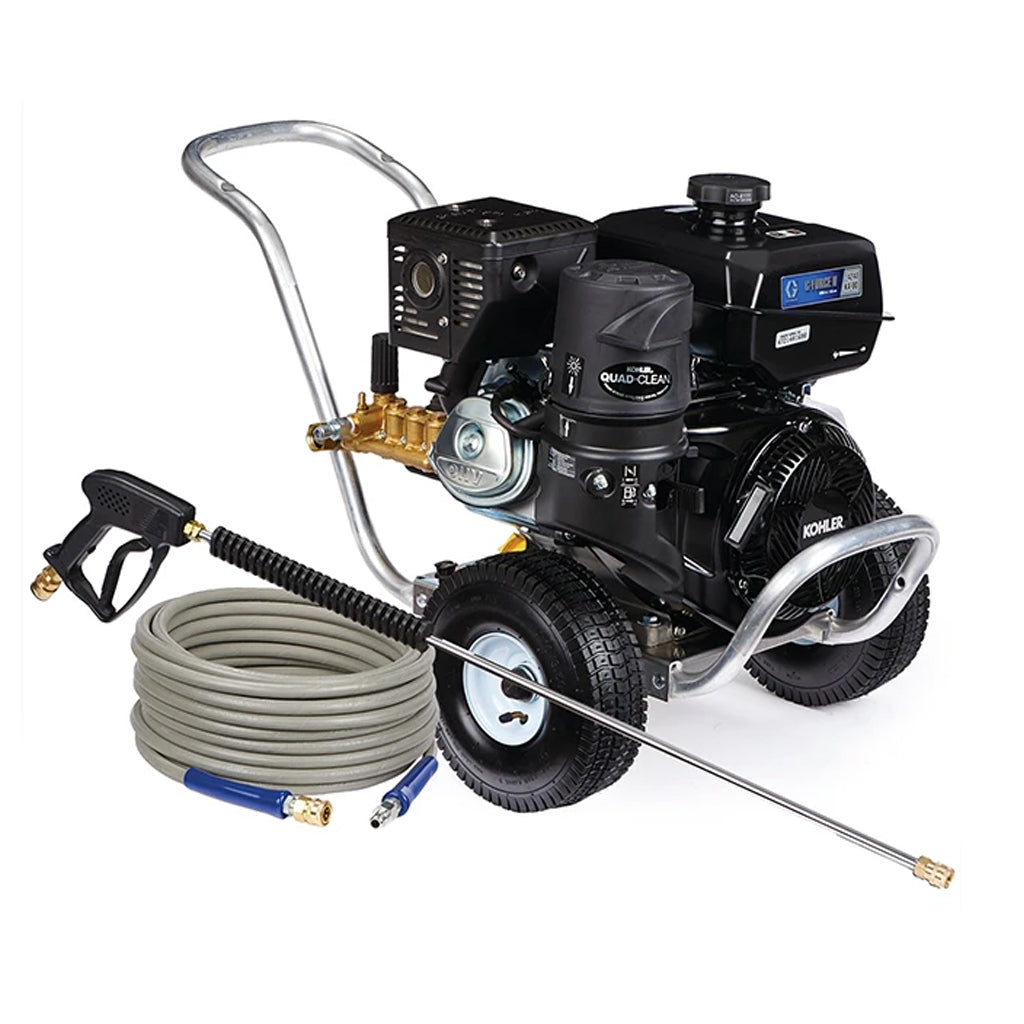

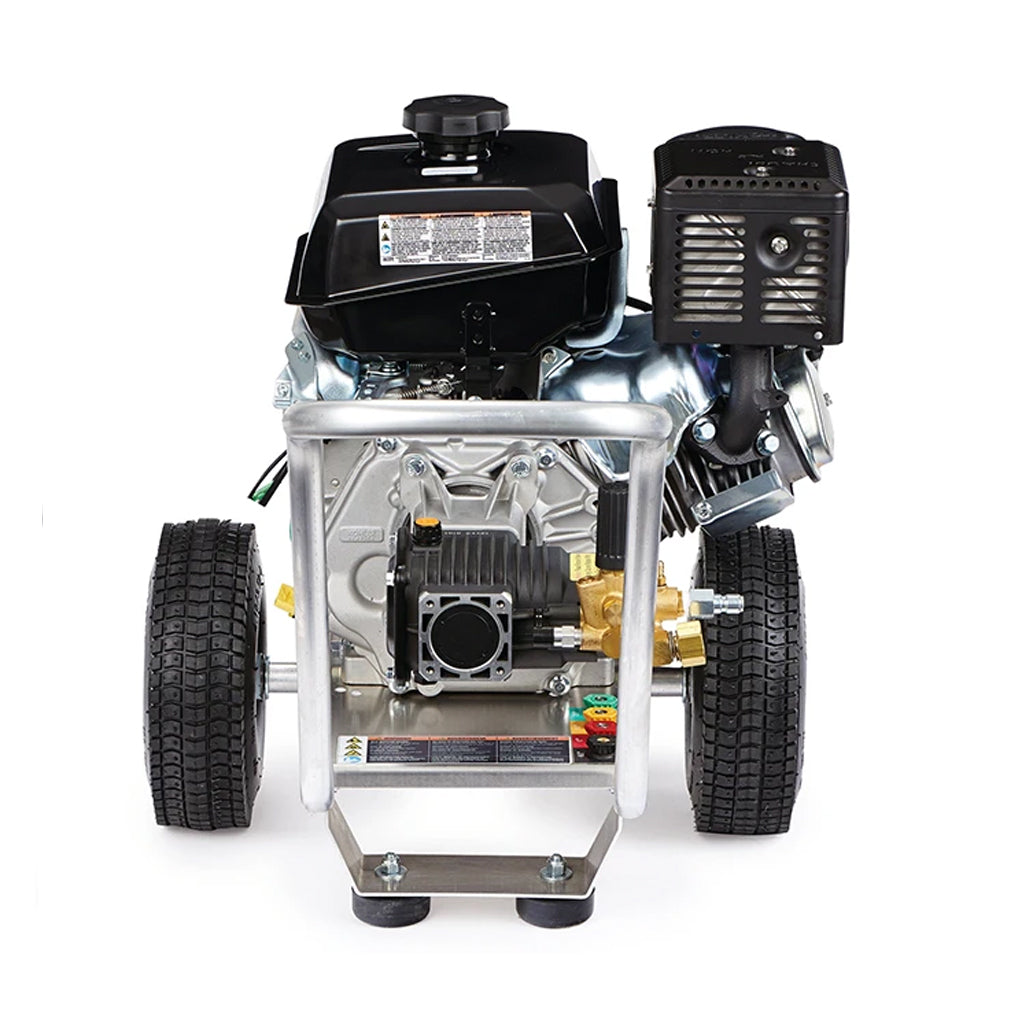

Graco G-Force II 4240 KA-DD 4200 PSI Pressure Washer

The Graco G-Force II™ 4240 KA-DD is a high-performance petrol pressure washer built for residential remodelers, paint contractors, and property maintenance professionals. Engineered to deliver exceptional durability for medium-to-heavy cleaning schedules (10 to 20 hours per week), it unleashes a powerful 4200 PSI of stripping force combined with a steady 15 LPM water flow to clear away grit, grime, and scaling paint instantly.

By utilizing an ultra-compact Direct Drive (DD) design, the water pump is coupled directly to the engine's primary drive shaft. This layout matches the pump's RPM directly to the engine (around 3500 RPM), completely removing the need for drive belts, pulleys, or extra mechanical linkages. The result is an exceptionally lightweight 47 kg machine that offers maximum portability on the jobsite and loads into trucks with minimal effort.

Graco G-Force II brochure

Compare Table

Click here to open table


	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD
Part Numbers:	25N638	25N639	25N681	25N682	25N683	25N684	25N640	25N641
Max Pressure - bar (PSI)	227 (3300)	220 (3200)	275 (4000)	275 (4000)	275 (4000)	275 (4000)	290 (4200)	290 (4200)
Max. flow - l/min (gpm)	9.46 (2.5)	11.36 (3)	15.14 (4)	15.14 (4)	15.14 (4)	15.14 (4)	15 (4)	15 (4)
Engine displacement - cm3	200	270	390	390	390	390	429	390
Pump	AR Brass Triplex	AR Brass Triplex	GP Brass Triplex	CAT Brass Triplex	GP Brass Triplex	CAT Brass Triplex	AR Triplex Plunger	AR Triplex Plunger
Weight - kg (lbs)	30.4 (67)	37.2 (82)	58.5 (129)	60.3 (133)	72.1 (159)	71.6 (158)	47 (104)	46 (102)
SmartControlTM with ProGuardTM	4.0	4.0	4.0	3.0	3.0	3.0	3.0	3.0
Gardena® Connection	■	■	■	■	■	■	■
Chemical injector	Integrated	Integrated	■	■	■	■	■	■
Direct Driven	■	■	■	■			■	■
Belt Driven					■	■
Adjustable Unloader	Integrated	Integrated	External	External	External	External	Integrated	External
Easy Start Pressure Relief		■	■	■	■	■	■	■
Light Weight Aluminium Frame		■	■	■	■	■	■	■
Thermo-sensor	■	■	■	■	■	■	■
Cold Water	■	■	■	■	■	■	■	■
Tips	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546
Gun	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784
Filter (mesh)	50	50	50	50	50	50	50	50
Hose	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 24478315m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783
Engine oil	■	■	■	■	■	■	■	■
	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD


	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD
Part Numbers:	25N638	25N639	25N681	25N682	25N683	25N684	25N640	25N641
Max Pressure - bar (PSI)	227 (3300)	220 (3200)	275 (4000)	275 (4000)	275 (4000)	275 (4000)	290 (4200)	290 (4200)
Max. flow - l/min (gpm)	9.46 (2.5)	11.36 (3)	15.14 (4)	15.14 (4)	15.14 (4)	15.14 (4)	15 (4)	15 (4)
Engine displacement - cm3	200	270	390	390	390	390	429	390
Pump	AR Brass Triplex	AR Brass Triplex	GP Brass Triplex	CAT Brass Triplex	GP Brass Triplex	CAT Brass Triplex	AR Triplex Plunger	AR Triplex Plunger
Weight - kg (lbs)	30.4 (67)	37.2 (82)	58.5 (129)	60.3 (133)	72.1 (159)	71.6 (158)	47 (104)	46 (102)
SmartControlTM with ProGuardTM	4.0	4.0	4.0	3.0	3.0	3.0	3.0	3.0
Gardena® Connection	■	■	■	■	■	■	■
Chemical injector	Integrated	Integrated	■	■	■	■	■	■
Direct Driven	■	■	■	■			■	■
Belt Driven					■	■
Adjustable Unloader	Integrated	Integrated	External	External	External	External	Integrated	External
Easy Start Pressure Relief		■	■	■	■	■	■	■
Light Weight Aluminium Frame		■	■	■	■	■	■	■
Thermo-sensor	■	■	■	■	■	■	■
Cold Water	■	■	■	■	■	■	■	■
Tips	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546
Gun	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784
Filter (mesh)	50	50	50	50	50	50	50	50
Hose	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 24478315m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783
Engine oil	■	■	■	■	■	■	■	■
	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD

Specifications

Part Number: 24N640 (Model: G-Force II 4240 KA-DD)
Operational Segment: Residential Remodeler / Commercial Property Maintenance
Maximum Fluid Pressure: 4200 PSI (290 bar)
Maximum Flow Rate: 15 LPM (Approx. 4.0 GPM)
Total Cleaning Power Index: 16,800 Cleaning Units ($PSI \times GPM$)
Engine Configuration: Kohler® CH440 OHV with Quad-Clean™ Filtration
Water Pump Style: AR Industrial Triplex Plunger Pump / Forged Brass Manifold
Transmission Type: Direct Drive (Pump RPM matches Engine RPM)
Chassis Composition: 100% Heavy-Gauge Corrosive-Resistant Aluminum
System Dry Weight: 47 kg
Included Hose Assembly: 0.95 cm (3/8 in) ID x 15 m (50 ft) Non-Marking Braided Jacket
Included Gun / Lance Assembly: Professional Grade 91 cm (36 in) Wand with Quick Connects

Features

The Engine (Kohler® Command Pro CH440): Powered by a commercial-grade, multi-use Kohler CH440 engine. Features a heavy-duty forged steel crankshaft, cast-iron cylinder bore lining, and an advanced Quad-Clean™ 4-stage cyclonic air filtration system that forces airborne dust and paint overspray particles out before they can contaminate the combustion chamber.
The Water Pump (Annovi Reverberi® Triplex Plunger Pump): Built with a professional-tier AR Triplex plunger pump featuring a forged brass manifold. This composition disperses thermal energy far more effectively than standard steel parts, reducing internal heat buildup to protect your high-pressure packings from cracking.
100% Lightweight Aluminum Chassis: Constructed from Graco’s signature structural aluminum frame. It is naturally resistant to rust, chemical degradation, and water corrosion while remaining up to 40% lighter than heavy steel-frame alternatives.
EZ Start™ Pressure Relief Unloader: Features an adjustable pressure unloader integrated directly into the pump head. Its EZ Start loop bypasses high-pressure water buildup during starting sequences, allowing the recoil pull-start to glide freely without requiring the operator to clip or squeeze the spray gun trigger.
Heavy-Duty 19mm Steel Axles: Built over professional-grade 19mm steel axle shafts that hold up under jobsite shocks and rough transportation, keeping the frame perfectly square and the pneumatic tires rolling smooth.
Downstream Chemical Injector: Arrives pre-packaged with an integrated detergent siphoning kit, letting you pull downstream soaps and exterior cleaning solutions straight from the bottle into your low-pressure spray pattern.
