Graco G-Force II 4040 HG-BD 4000 PSI Pressure Washer (25N683)

$5,940.00

Description

Graco G-Force II 4040 HC-BD 4000 PSI Pressure Washer 25N683

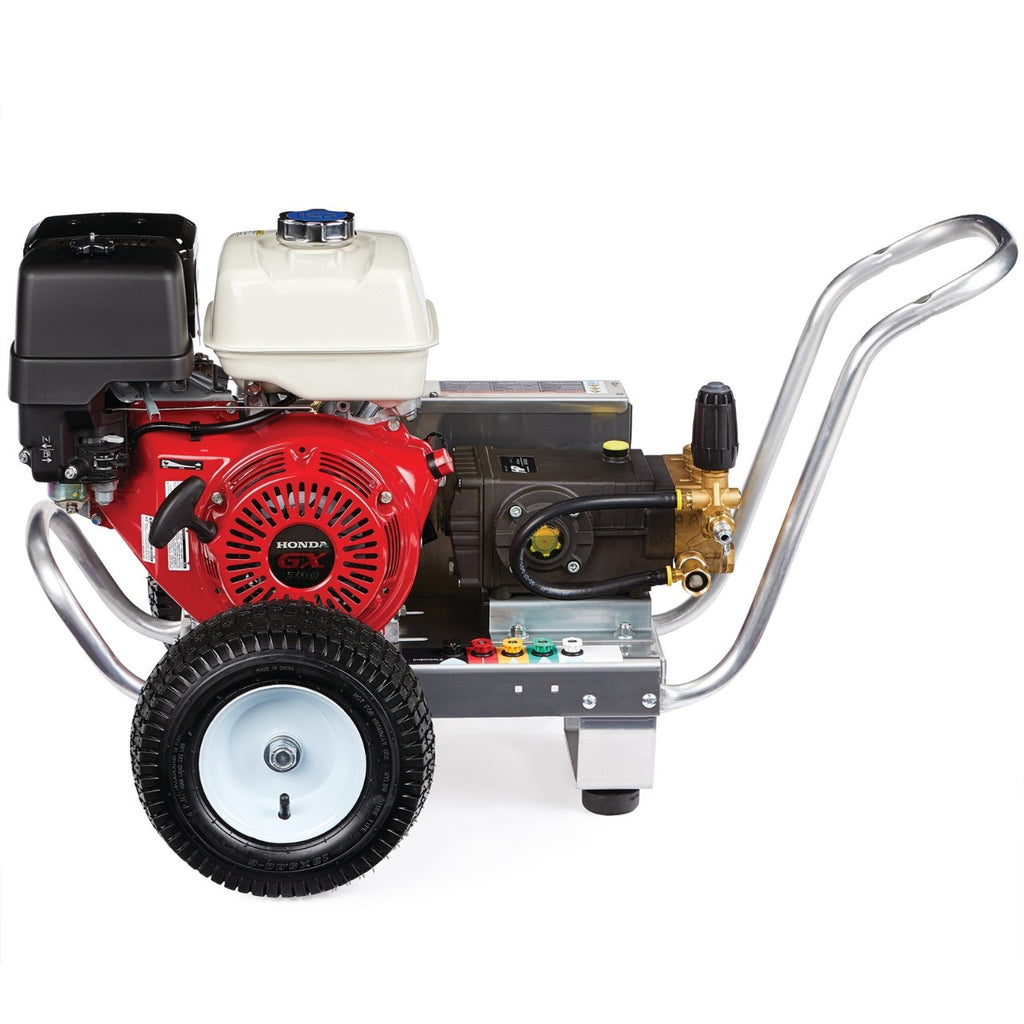

The Graco G-Force II 4040 HG-DD pressure washer is built tough to handle weekly use and deliver high flow and pressure in a compact, durable package.

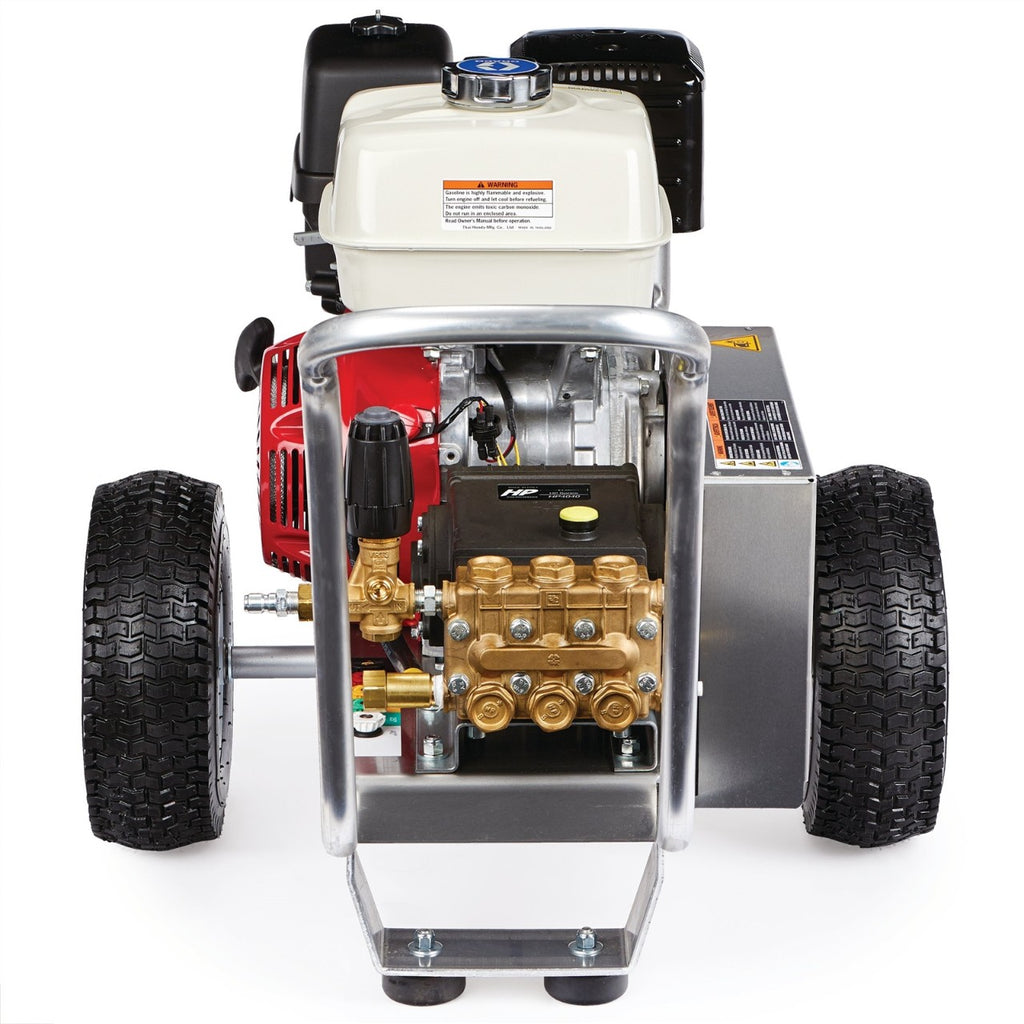

Sporting a Honda GX390, GP Triplex Plunger Pump with an output of 15lpm & 4000 PSI, this is your 132kg performer suitable for 30+ hours per week of usage. This pressure washer is a belt driven system.

Being a Belt Drive pressure washer, the unit experiences lower RPM/operating temperature and ensures a long pump life. The pump is connected to a pulley and belt system that is connected to the engine. This allows the pump to run at a much lower rpm (typically 900-1700 rpm). The pump is mounted away from the engine and has a crankcase with more oil capacity, allowing the pump to run much cooler than a direct drive pump. The pump vibrates less and suffers less pump fatigue as a result of clever design.

Technology that makes the Difference - Key Features to Consider for Maximum Productivity

While pressure washers are simple machines, understanding the key components and differences will help you make the right purchase.

Compare Table

Click here to open table


	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD
Part Numbers:	25N638	25N639	25N681	25N682	25N683	25N684	25N640	25N641
Max Pressure - bar (PSI)	227 (3300)	220 (3200)	275 (4000)	275 (4000)	275 (4000)	275 (4000)	290 (4200)	290 (4200)
Max. flow - l/min (gpm)	9.46 (2.5)	11.36 (3)	15.14 (4)	15.14 (4)	15.14 (4)	15.14 (4)	15 (4)	15 (4)
Engine displacement - cm3	200	270	390	390	390	390	429	390
Pump	AR Brass Triplex	AR Brass Triplex	GP Brass Triplex	CAT Brass Triplex	GP Brass Triplex	CAT Brass Triplex	AR Triplex Plunger	AR Triplex Plunger
Weight - kg (lbs)	30.4 (67)	37.2 (82)	58.5 (129)	60.3 (133)	72.1 (159)	71.6 (158)	47 (104)	46 (102)
SmartControlTM with ProGuardTM	4.0	4.0	4.0	3.0	3.0	3.0	3.0	3.0
Gardena® Connection	■	■	■	■	■	■	■
Chemical injector	Integrated	Integrated	■	■	■	■	■	■
Direct Driven	■	■	■	■			■	■
Belt Driven					■	■
Adjustable Unloader	Integrated	Integrated	External	External	External	External	Integrated	External
Easy Start Pressure Relief		■	■	■	■	■	■	■
Light Weight Aluminium Frame		■	■	■	■	■	■	■
Thermo-sensor	■	■	■	■	■	■	■
Cold Water	■	■	■	■	■	■	■	■
Tips	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546
Gun	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784
Filter (mesh)	50	50	50	50	50	50	50	50
Hose	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 24478315m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783
Engine oil	■	■	■	■	■	■	■	■
	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD


	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD
Part Numbers:	25N638	25N639	25N681	25N682	25N683	25N684	25N640	25N641
Max Pressure - bar (PSI)	227 (3300)	220 (3200)	275 (4000)	275 (4000)	275 (4000)	275 (4000)	290 (4200)	290 (4200)
Max. flow - l/min (gpm)	9.46 (2.5)	11.36 (3)	15.14 (4)	15.14 (4)	15.14 (4)	15.14 (4)	15 (4)	15 (4)
Engine displacement - cm3	200	270	390	390	390	390	429	390
Pump	AR Brass Triplex	AR Brass Triplex	GP Brass Triplex	CAT Brass Triplex	GP Brass Triplex	CAT Brass Triplex	AR Triplex Plunger	AR Triplex Plunger
Weight - kg (lbs)	30.4 (67)	37.2 (82)	58.5 (129)	60.3 (133)	72.1 (159)	71.6 (158)	47 (104)	46 (102)
SmartControlTM with ProGuardTM	4.0	4.0	4.0	3.0	3.0	3.0	3.0	3.0
Gardena® Connection	■	■	■	■	■	■	■
Chemical injector	Integrated	Integrated	■	■	■	■	■	■
Direct Driven	■	■	■	■			■	■
Belt Driven					■	■
Adjustable Unloader	Integrated	Integrated	External	External	External	External	Integrated	External
Easy Start Pressure Relief		■	■	■	■	■	■	■
Light Weight Aluminium Frame		■	■	■	■	■	■	■
Thermo-sensor	■	■	■	■	■	■	■
Cold Water	■	■	■	■	■	■	■	■
Tips	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / chemical tip - 805634	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546	0° - 805591 / 15° - 805592 / 25° - 805593 / 40° - 805546 / chemical tip - 805634 / 40° - 805546
Gun	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784	90cm + QDs - 244784
Filter (mesh)	50	50	50	50	50	50	50	50
Hose	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 24478315m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783	15m + QDs - 244783
Engine oil	■	■	■	■	■	■	■	■
	3325 HA-DD	3230 HA-DD	4040 HG-DD	4040 HC-DD	4040 HG-BD	4040 HC-BD	4240 KA-DD	4240 HA-DD

Specifications

Fuel Tank Capacity (l): 6.5
Hose Length (cm): 152
Hose Length (m): 15.2
Maximum Flow Rate (l/min): 15.14
Maximum Working Pressure (bar): #275
Maximum Working Pressure (kPa): 2750
Model: G-Force II
Motor Series: GX390
Pump Type: Triplex Plunger
Series: 4040 HG-BD
Type: Gas Pressure Washer
Weight (kg): 72.1

Features

Belt Drive Performance: The pump operates at a lower RPM (900–1700 rpm), which leads to cooler operating temperatures and a significantly longer pump life.
GP Triax Plunger Pump: Features a reliable General Pump (GP) Triax plunger design for consistent high-pressure output.
Vibration Reduction: Because the pump is mounted away from the engine and has a larger oil capacity crankcase, it vibrates less and suffers less fatigue over time.
Honda® Engine: Includes a reliable, easy-to-start Honda® engine equipped with Oil Alert™ to prevent damage if oil levels drop too low.
100% Aluminium Frame: The heavy-gauge aluminium frame is up to 40% lighter than steel, making it easier to maneuver while remaining entirely resistant to corrosion from water and chemicals.
External Pressure Unloader: Allows for trouble-free, adjustable pressure to match specific application needs while keeping water cooler to prolong pump life.
EZ Start Pressure Relief: A standard Graco feature that bypasses the pump to eliminate pressure build-up during startup, so you don't have to pull the gun trigger to start the engine.
Overheat Protection: An integrated thermal sensor prevents the pump from overheating when the unit is left in bypass mode.
